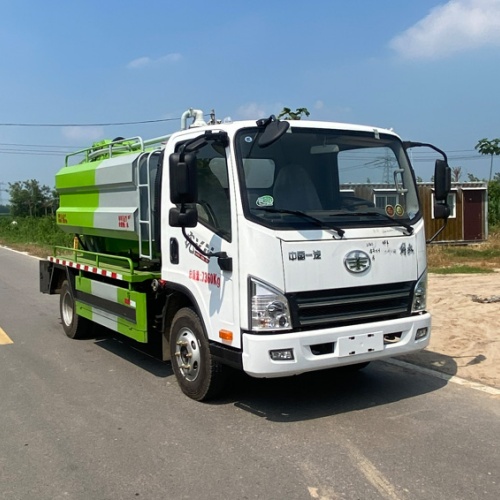

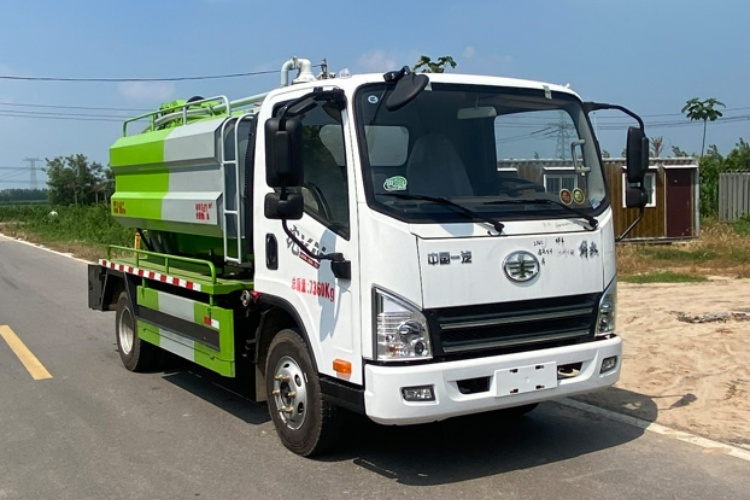

Cross water tank cleaning suction truck
1. Efficient processing, saving time and effort
This cleaning and suction truck is equipped with a high-power water ring vacuum pump and an anti clogging sewage pump, with a sewage treatment speed of 80-100m ³/h, supporting continuous operation without frequent back and forth transportation. The unique self-priming design can achieve a vertical suction range of 9 meters, allowing for stable suction of thick and viscous pollutants even when the suction pipe is in a half pipe state.
2. Intelligent control, humanized design
Adopting a fully automatic electronic control system, it supports manual/automatic mode switching, and can start and stop core components such as vacuum pump, centrifugal pump, and flushing pump with one click. The operation interface is simple and intuitive.
3. Safe, environmentally friendly, reliable and durable
This pipeline dredging vehicle is equipped with an anti overflow device, overload protection system, and fully sealed pipeline design, effectively avoiding sewage leakage and equipment failure, and ensuring operational safety.
4. Flexible and versatile, with strong adaptability
Equipped with dual functions of cleaning and sewage suction, it can be equipped with sprinkler devices (front flushing, rear spraying, side spraying), high-pressure dredging equipment, and secondary treatment system of screw stacking machine, achieving multi scenario applications such as green watering, road flushing, pipeline dredging, and deep sewage purification.
5. Energy conservation, cost reduction, and efficiency improvement
This cleaning and suction truck adopts sandwich power take-off full power output technology. Compared with traditional top cover power take-off, it has lower noise, better heat dissipation, reduces gear loss, and extends equipment life.
1. Core configuration
-Chassis system: Reasonable wheelbase, flexible handling, suitable for complex urban road conditions.
-Power system: This cleaning and suction vehicle supports main engine drive or external power supply, equipped with a high-power generator set to meet the power needs of different scenarios.
-Suction module: The water ring vacuum pump continuously boosts the pressure, and the suction pipe is equipped with an 8-meter flexible hose, which can be extended up to 20 meters and is suitable for long-distance operations; The anti clogging sewage pump supports simultaneous suction and discharge to avoid pump blockage.
-Cleaning module: High pressure pump with a pressure of up to 24MPa (optional imported brand), equipped with a 60 meter hose and a rotating nozzle, can clear long-term blockages in septic tanks and pipelines.
-Processing module: The pipeline dredging vehicle includes a sewage separation system, a dosing device, and an optional screw dewatering machine to achieve harmless treatment of pollutants and resource recovery.
-Control system: PLC logic control, supporting automatic switching of suction and discharge, fault diagnosis and status monitoring, easy and safe operation.
2. Safety design

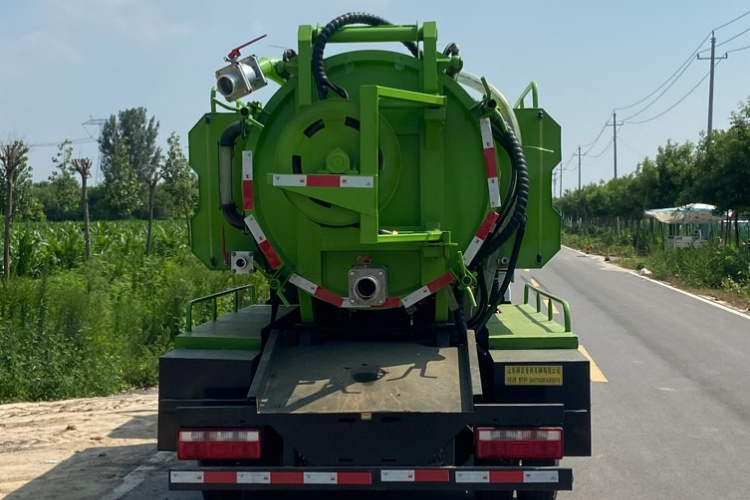

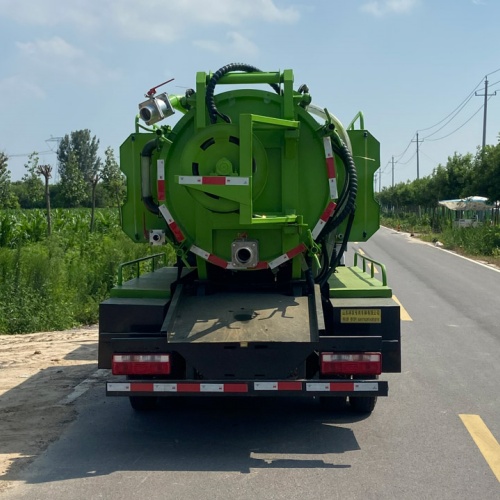

-The tank is equipped with a float level controller and an electronic alarm device to prevent overfilling and backflow; The hydraulic automatic opening of the rear tank door facilitates the cleaning of sediment.
-The circuit system has overload protection and leakage monitoring functions, and automatically cuts off abnormal power supply during operation to ensure personnel safety.
3. Optional solutions
-Function extension: This pipeline dredging vehicle can be optionally equipped with sprinkler devices, guardrail cleaning equipment, and lifting platforms to meet diverse environmental sanitation needs.
-Configuration upgrade: Supports customized options such as imported high-pressure pumps, intelligent remote control operation, and vehicle weighing systems, suitable for high-end work scenarios.
Application scenarios
Suitable for urban septic tank cleaning, sewer dredging, industrial sewage tank treatment, road flushing, green sprinkler, etc., especially suitable for municipal sanitation, property cleaning, industrial environmental protection and other fields. It is an integrated equipment that efficiently solves sewage and sewage treatment problems.
【Technical parameters of the entire vehicle】 | |||||
Product trademark | Xiangnongda brand | Announcement Batch | 386 | ||
Product Name | Product model | SGW5070GQWCA6 | |||
Total mass (Kg) | 7360 | Tank volume (m3) | 8.8 | ||
Rated load capacity (Kg) | 2430 | Dimensions (mm) | 7380*2280*3150，3250 | ||
Curb weight (Kg) | 4735 | Cargo compartment size (mm) | ×× | ||
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||||
Cab capacity (persons) | 3 | Maximum load capacity of saddle (Kg) | |||
Approach Angle/Departure Angle (degrees) | 20/14 | Front suspension/rear suspension (mm) | 1115/1580 | ||
Axle load (Kg) | 2640/4720 | Maximum speed (Km/h) | 95 | ||

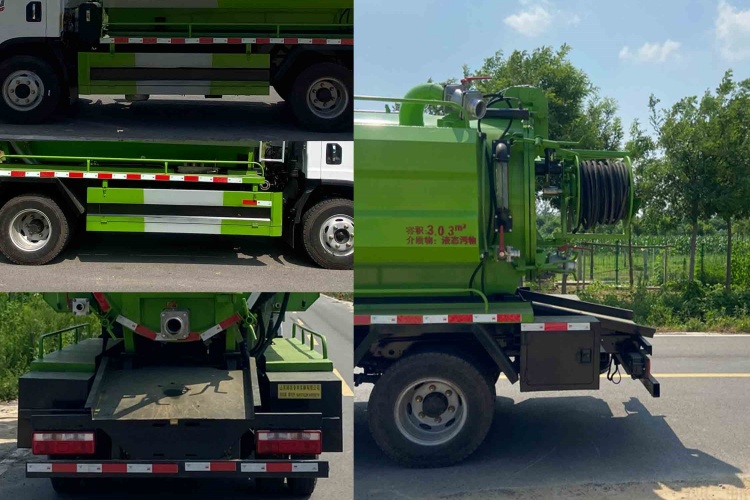

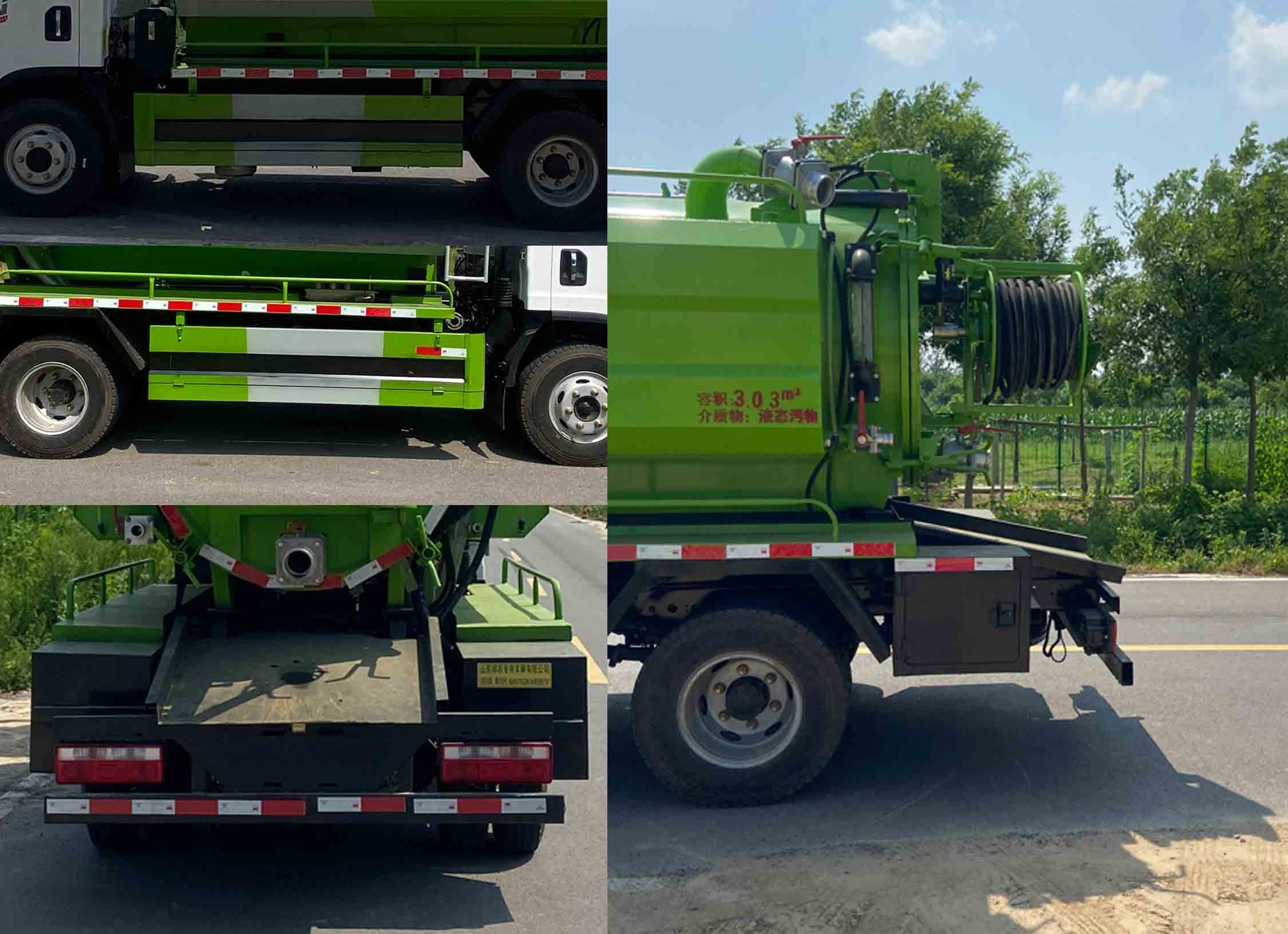

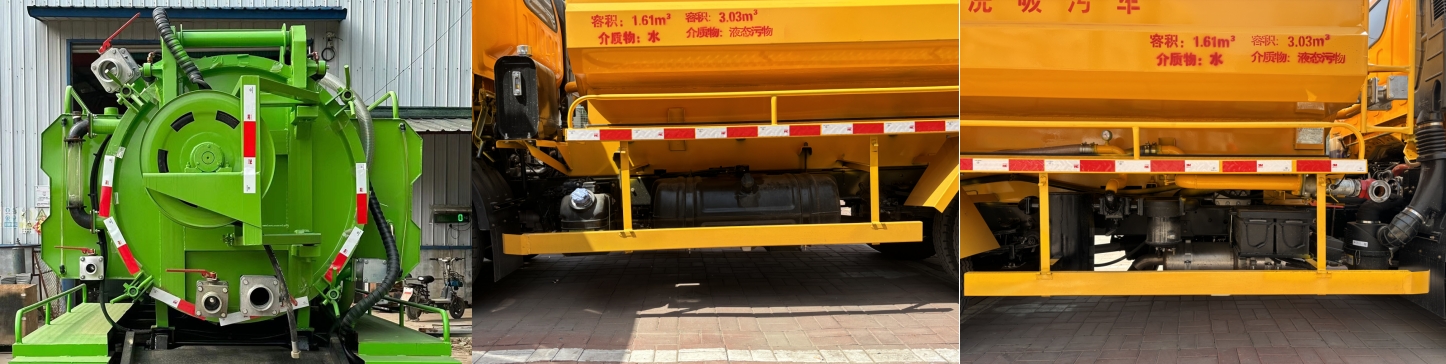

remarks | This vehicle is mainly used for sewage discharge and dredging, with the main devices being tanks and pumps The middle is a sewage tank, and the two are clear water tanks Effective volume of sewage tank: 3.03 cubic meters, medium: liquid waste, density: 800 kg/cubic meter, tank dimensions (straight section length x diameter) (mm): 3100 × 1200. Effective volume of clear water tank: 1.61 cubic meters, transport medium: water, density: 1000 kg/cubic meter, tank water tank section is composed of arc and polygon, external dimensions (length × width × height) (mm): 2750 × 600X850. Sewage tank and clear water tank cannot be loaded and transported at the same time The side rear protection is welded with Q235 material, and the cross-sectional size of the rear protection (mm) is 100 × 50. The height of the rear protection above the ground (mm) is 410. The ABS model is CM4XL-4S/4M, and the rear discharge outlet style of the tank body is optional Optional installation of left and right batteries, fuel tanks, urea tanks, and other device positions and styles along with the chassis. | ||||
【Chassis Technical Parameters】 | |||||
Chassis Model | CA1072P40K61L2BE6A84 | Chassis name | Truck chassis | ||
Trademark name | liberation brand | manufacturing enterprise | China FAW Group Co., Ltd | ||
Number of axes | 2 | Number of tires | 6 | ||
Wheelbase (mm) | 3300，3600 | ||||
Tire specifications | 7.00R16 14PR,7.50R16 14PR,7.50R16 16PR,7.00R16LT 14PR,7.50R16LT 14PR,7.50R16LT 16PR | ||||
Number of steel plate springs | 3/3+4,3/7+3,7/7+3,3/3+3,3/7+9,7/7+9,7/10+3,7/10+4,3/10+3,3/10+4,3/8+8,3/8+7,3/5+2 | Front wheel base (mm) | 1580,1601,1649,1654,1664,1668,1704,1714,1761,1771 | ||
Fuel type | diesel oil | Rear wheel base (mm) | 1480,1494,1525,1539,1565,1579,1590,1604,1740,1754,1640,1800 | ||
Emission standards | GB17691-2018国Ⅵ | ||||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) | ||
D25TCIF1 CA4DB1-13E6 H20-120E60 WP2.3NQ130E61 | Kunming Yunnei Power Co., Ltd China FAW Group Co., Ltd Anhui Quanchai Power Co., Ltd Weichai power company limited | 2499 2207 2000 2289 | 115 95 90 96 | ||
