Septic Pumper
High Efficiency & Dual Saving
Equipped with a water circulation pump and oil-water separator, the system reduces energy consumption and water waste, while the efficient direct-dumping design significantly cuts down transportation time and operational costs.Leading Green Emission Standard
Built on a certified National VI emission standard chassis, it ensures minimal exhaust pollution and full compliance with the strictest current environmental regulations.Enhanced Eco-Friendly Process
Features tank phosphating treatment and anti-corrosion spray technology. This process prevents tank corrosion, eliminates contamination from rust, and extends the equipment's service life.Cost-Effective Operation
The direct on-site dumping capability eliminates the need for intermediate disposal trips, dramatically reducing fuel consumption, labor time, and overall transportation expenses.Corrosion-Resistant & Durable Tank
The specialized internal phosphating and protective spray coating safeguards the tank against corrosive manure, ensuring long-term structural integrity and reducing maintenance needs.Integrated Environmental Solution
Combines a clean-operating engine, waste-reducing circulation systems, and a corrosion-proof tank into a single, responsible solution for modern waste management that prioritizes both productivity and environmental protection.
1. Chassis configuration
-Chassis model: The cleaning and suction vehicle adopts a special chassis for liberation, with a wheelbase of 2800mm and a compact body, suitable for narrow urban roads and residential operations.
-Engine: Equipped with a National VI emission engine (such as Xichai 130 horsepower or Quanchai 143 horsepower), the power is stable and meets environmental requirements.
-Transmission: Wanliyang 5-speed transmission, flexible operation, adaptable to different working conditions.
-Tire specifications: Available in 6.50R16 or 7.00R16 steel wire tires, with strong load-bearing capacity, suitable for complex urban and rural road conditions.
-Cab: Equipped with standard electric doors and windows, central locking system, air conditioning, and optional multifunctional steering wheel for high driving comfort.
2. Installation configuration
-Tank structure:
-This pipeline dredging vehicle is made of high-quality Q235 carbon steel, with a tank thickness of 6mm. The head is formed by one-time die-casting, which is corrosion-resistant and high-pressure resistant.
-Divided into clear water tank and suction tank, the two tanks are independently designed and can be interconnected through ball valves to achieve expansion of the clear water tank (up to 8 cubic meters of clear water can be stored, also serving as a sprinkler truck).
-Cleaning system:
-Equipped with Tianjin Tongjie 215 flow high-pressure pump (pressure 24MPa), standard with 80m 19 diameter high-pressure pipe and 10 different types of nozzles, supporting remote reel operation, can clear sewers, flush road surfaces and walls.
-Equipped with winter air blowing function to prevent pipeline icing and adapt to cold weather in the north.
-Suction system:
-This cleaning and suction truck adopts a water circulation pump or a 3-ton oil pump (with oil-water separator), with high vacuum degree, strong suction force, suction stroke ≥ 8 meters, and tank filling time ≤ 5 minutes.
-Equipped with a 6-meter suction pipe (with positive and negative quick connectors), a sight glass, and an anti overflow valve to prevent damage to the vacuum pump caused by sewage backflow.
-Unloading method:

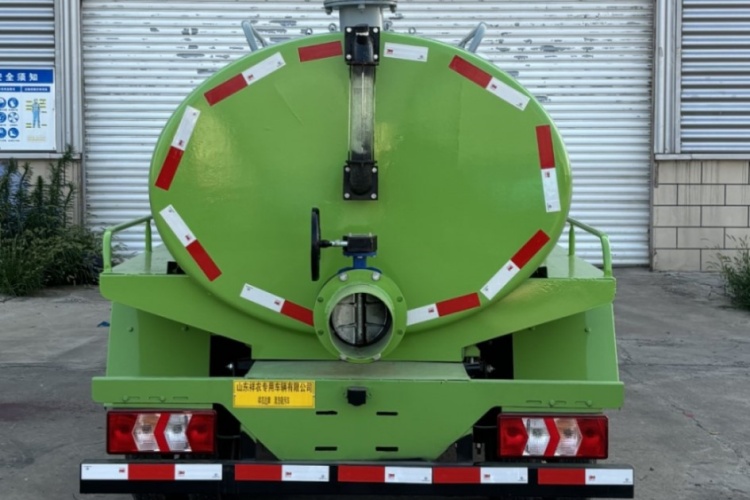

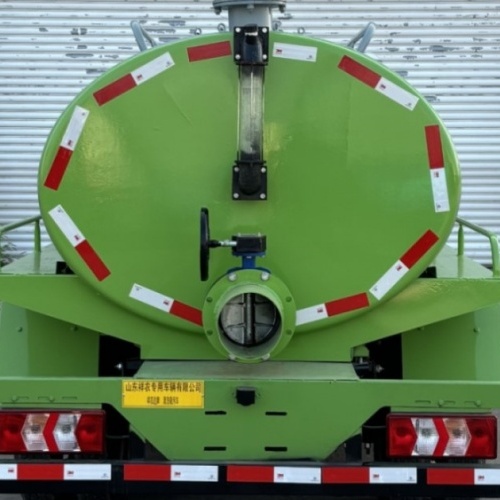

-The tank of this pipeline dredging vehicle can be lifted hydraulically (double top self dumping), and the back cover can be opened hydraulically with a tilt angle of ≥ 45 °, making it easy to completely dump sludge, feces and other pollutants.
Product Specifications & Capabilities FAQ

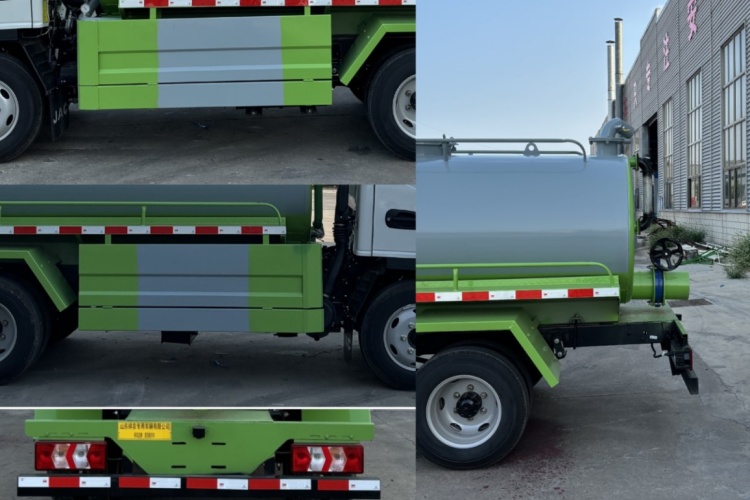

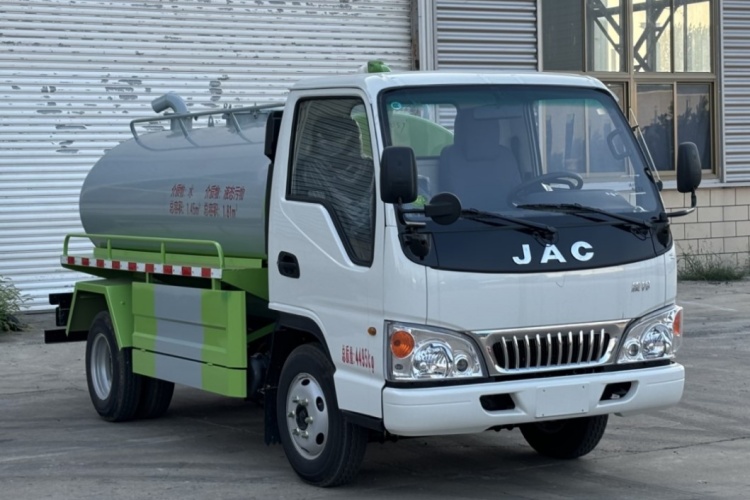

1. What is the capacity of the 3 Cubic Manure Truck?
The truck is equipped with a primary suction tank with a standard capacity of 3 cubic meters, providing an optimal balance between efficient load handling and vehicle maneuverability for farm and municipal waste management.
2. What type of waste can this truck handle?
It is specifically designed to handle agricultural manure, animal slurry, viscous organic waste, and semi-solid sludge commonly found in livestock farms, biogas plants, and related facilities.
3. What chassis standard does it use, and is it environmentally compliant?
The unit is mounted on a reliable National VI (China Phase 6) emission standard chassis, ensuring it meets the latest stringent regulations for exhaust emissions and environmental protection.
Core Technology & Operational Features
4. How does the truck ensure efficient and clog-free operation?
It utilizes a high-power vacuum pump with strong suction force and features an internal anti-clogging tank design (including anti-swirl structures) to handle thick slurry and minimize blockages.
5. What are the key energy-saving features?
The system integrates a water circulation pump and an oil-water separator. This design recycles water during cleaning operations and separates oils, reducing fresh water consumption and overall energy waste.
6. What safety features are included to prevent spills?
A critical standard feature is the automatic tank overflow alarm. This system alerts the operator before the tank reaches full capacity, preventing hazardous and environmentally damaging overflows.
7. How is the tank protected against corrosion?
To ensure durability, the tank undergoes a comprehensive phosphating treatment and is coated with anti-corrosion spray paint, significantly extending its service life against corrosive manure and slurry.
Application & Maintenance
8. What is the main advantage of the direct-dumping function?
The direct on-site dumping capability allows for rapid unloading without the need for secondary transfer equipment. This drastically reduces turnaround time, transportation costs, and improves operational efficiency.
9. What are the primary application scenarios for this truck?
It is ideal for routine manure management on livestock (dairy, poultry, swine) farms, cleaning of biogas digesters, municipal organic waste collection, and maintenance of agricultural wastewater ponds.
10. What about maintenance and after-sales support?
We provide a complete operator's manual detailing routine checks. Key wear parts like seals and filters are readily available. Our technical support team offers guidance on maintenance and troubleshooting for long-term reliability.
