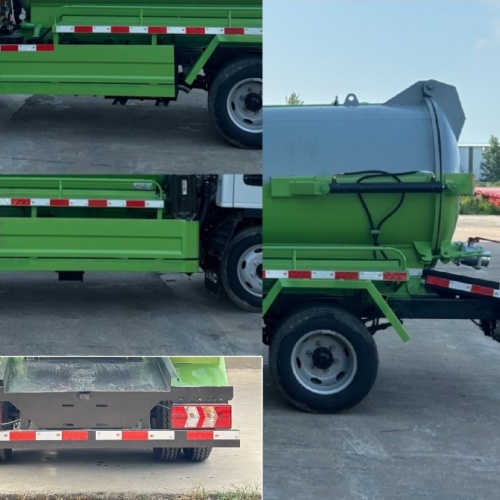

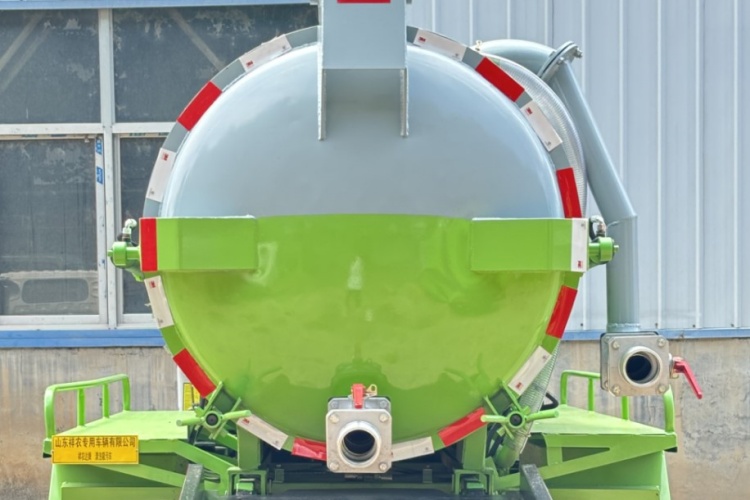

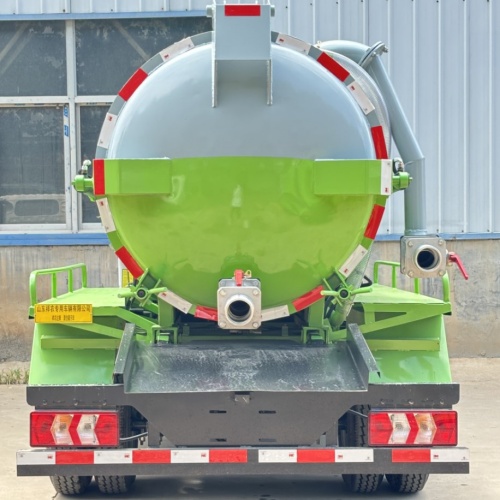

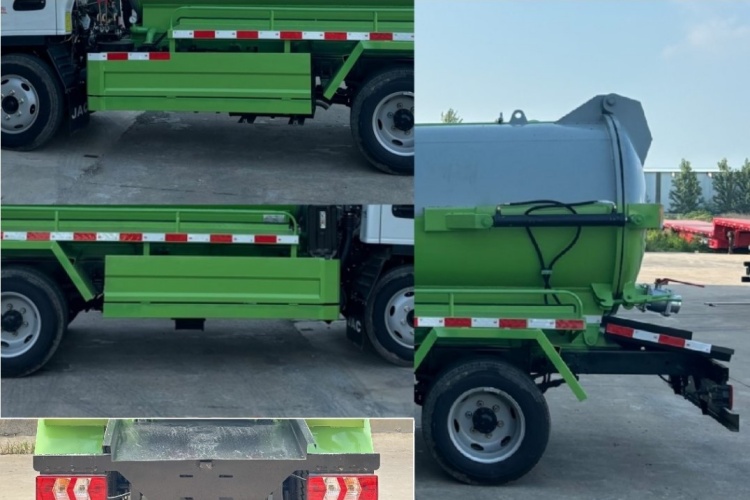

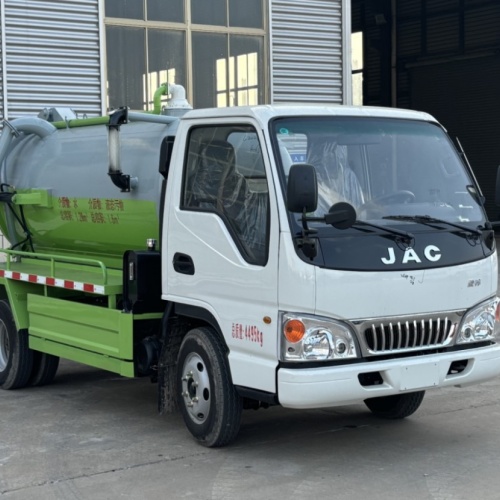

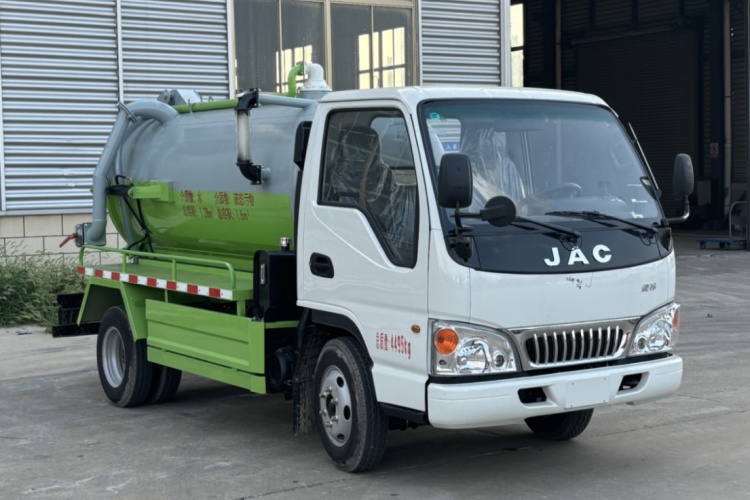

5-ton high-quality cleaning and suction truck
Tank material: This cleaning and suction truck is made of 6mm thick carbon steel material, with internal anti-corrosion coating treatment, strong anti-corrosion ability, and long service life.
Modular design: Core components such as high-pressure pumps and vacuum pumps can be disassembled and maintained, with low maintenance costs.
1. High pressure water jet cleaning system
22MPa ultra-high pressure impact: This cleaning and suction truck is equipped with a Tianjin Tongjie 215L/min plunger pump. The 360 ° spiral water jet generated by the rotating nozzle can crush stubborn blockages such as concrete hardening and tree root penetration in pipes with a diameter of 500mm. Actual testing shows that the system can clear a DN300 sewage pipe with a length of up to 120 meters within 15 minutes.
Intelligent pressure regulation: equipped with PLC control system, supporting 0-22MPa pressure stepless regulation. For different pipe diameters (200-800mm), the fan-shaped nozzle (used for pipeline wall cleaning), direct spray nozzle (used for hard scale impact), or rotary nozzle (used for spiral dredging) can be switched with one click.
60 meter ultra long operating radius: This pipeline dredging vehicle uses German Mannheim 19 steel wire braided high-pressure pipes, combined with an automatic reel device, to achieve high-altitude building facade cleaning (such as cleaning oil stains on the exterior walls of a 15 story building) or extended operations in complex terrains (such as underground garage mezzanine pipelines).
2. Vacuum suction system
SK-12 water circulation vacuum pump: With a vertical suction range of 8.5 meters, it can fill a 10 cubic meter tank in 4 minutes and 30 seconds. Actual cases have shown that the system can extract mud mixtures with a moisture content of less than 30%, and the efficiency of single tank operation is 40% higher than that of traditional sewage suction trucks.
Anti clogging design: A 304 stainless steel filter screen (with a diameter of 8mm) is installed at the inlet of the tank, which, when combined with a gas water separator, can effectively intercept solid debris with a diameter of less than 50mm and avoid wear on the vacuum pump impeller.
Quick emptying technology: The tank body adopts a 12 ° tilt angle design, combined with a hydraulic lifting device, which can complete the dumping of dirt within 2 minutes, 30% faster than similar products.
【Technical parameters of the entire vehicle】 | |||||
Product trademark | Xiangnongda brand | Announcement Batch | 386 | ||
Product Name | Product model | SGW5044GQWHF6 | |||
Total mass (Kg) | 4495 | Tank volume (m3) | 2.88 | ||
Rated load capacity (Kg) | 1220 | Dimensions (mm) | 5400,5500×2000×2350,2400 | ||
Curb weight (Kg) | 3145 | Cargo compartment size (mm) | ×× | ||
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||||
Cab capacity (persons) | 2 | Maximum load capacity of saddle (Kg) | |||
Approach Angle/Departure Angle (degrees) | 18/17,18/16,18/15 | Front suspension/rear suspension (mm) | 1075/1375,1075/1475,1100/1450,1100/1550 | ||
Axle load (Kg) | 1620/2875 | Maximum speed (Km/h) | 100 | ||
remarks | This vehicle is used for urban sewage cleaning, suction and other environmental sanitation work Dimensions of the tank body (mm): total length 3230, straight section length 2800, diameter 1200, with a rear sewage tank body length of 1560 and a front clean water tank body length of 1240; The effective volume of the sewage tank is 1.5 cubic meters, and the total capacity is 1.6 cubic meters Medium: liquid waste; The effective volume of the clear water tank is 1.22 cubic meters, with a total capacity of 1.28 cubic meters, and the medium is water The clean water tank and the sewage tank are two independent tanks. The clean water tank is used for cleaning function, and the sewage tank is used for suction function. The cleaning and suction functions are not used simultaneously, and the sewage tank and the clean water tank cannot be fully loaded at the same time; The side protection is welded with Q235B material, and the rear protection is bolted with Q235B material. The cross-sectional size of the rear protection (width × height mm) is 50 × 100, and the ground clearance is 400mm. | ||||
【Chassis Technical Parameters】 | |||||
Chassis Model | HFC1041P23K1B4QZS | Chassis name | Truck chassis | ||
Trademark name | Jianghuai brand | manufacturing enterprise | Anhui Jianghuai Automobile Group Co., Ltd | ||
Number of axes | 2 | Number of tires | 6 | ||
Wheelbase (mm) | 2850，2950 | ||||
Tire specifications | 6.50R16LT 10PR,7.00R16LT 8PR,195/65R16LT 10PR | ||||
Number of steel plate springs | 8/7+6,4/7+6,4/3+2 | Front wheel base (mm) | 1491,1455,1441 | ||
Fuel type | diesel oil | Rear wheel base (mm) | 1435,1451,1468,1491,1508,1475 | ||
Emission standards | GB17691-2018国Ⅵ | ||||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) | ||
D20TCIF15 D20TCIF16 | Kunming Yunnei Power Co., Ltd Kunming Yunnei Power Co., Ltd | 1999 1999 | 90 103 | ||
