Cleaning Suction Truck
1. Multifunctional Integration for Comprehensive Operations
This vehicle seamlessly combines a high-pressure cleaning system and a powerful sewage suction unit into a single, highly efficient platform. It is designed to perform a complete range of operations—including high-pressure flushing, pipeline dredging, vacuum sewage suction, and controlled waste discharge—making it an all-in-one solution for diverse sanitation and industrial cleaning tasks.
2. Versatile Handling of Liquid and Semi-Liquid Waste
Engineered to manage various challenging substances, the truck effectively handles sludge, feces, wastewater, and other viscous or semi-liquid materials. Its robust suction and discharge systems ensure efficient loading, transport, and disposal of a wide spectrum of waste types, meeting the demands of municipal, environmental, and industrial applications.
3. High-Efficiency Operation with Powerful Vacuum Performance
Equipped with a high-power vacuum suction pump, the vehicle delivers a high vacuum degree and large-tonnage capacity, enabling rapid and thorough waste extraction. This high-efficiency design significantly reduces job completion time and improves operational productivity, especially in large-scale or time-sensitive projects.
4. Reliable Hydraulic System for Stable and Responsive Control
The integrated high-quality hydraulic system ensures smooth, precise, and reliable control of all operational functions. This enhances the vehicle’s performance during demanding tasks such as continuous suction, high-pressure washing, and system switching, providing operators with dependable and easy-to-manage equipment.
5. Durable and Corrosion-Resistant Construction
The tank body and all metal accessories are treated with advanced polymer anti-corrosion primer and durable metal topcoat. This coating process not only improves the vehicle's appearance but also provides long-term protection against rust and corrosion, extending service life even when handling chemically aggressive or abrasive waste materials.
6. Ergonomic and User-Friendly Design
Featuring a rationally designed structure, the vehicle offers excellent operational performance combined with flexible and easy-to-use controls. The layout prioritizes operator convenience and safety, allowing for efficient and comfortable handling during extended working hours, thereby reducing fatigue and increasing overall job site efficiency.
Product Introduction: 8 Cubic Shaanxi Automobile Xuande Vacuum Sewage Suction & Cleaning Vehicle
The 8 Cubic Shaanxi Automobile Xuande Vacuum Sewage Suction & Cleaning Vehicle represents a premium-grade solution in the specialized sanitation and industrial cleaning sector. Engineered for superior performance, operator comfort, and long-term reliability, this high power cleaning and suction truck is designed to meet the rigorous demands of modern municipal services, utility contractors, and industrial facility managers. Built upon the robust and reliable Class II original chassis from Shaanxi Automobile, the vehicle integrates a powerful vacuum sewage suction system with an efficient high-pressure water pump into a single, highly functional unit. The tank body offers an optimal 8-cubic-meter capacity, balancing substantial waste-holding volume with excellent road maneuverability. A standout feature is its exceptionally appointed driver's cabin, which incorporates a new interior with advanced ergonomic and technological features, setting a new standard for operator comfort and control in this vehicle class. This combination of rugged capability, operational efficiency, and driver-centric design makes the Xuande model a versatile and high-efficiency asset for a wide spectrum of cleaning and suction applications.
Key Features and Technical Specifications
1. Premium Driver Cabin for Enhanced Operator Comfort and Safety
The vehicle prioritizes the operator's environment with a fully upgraded driver's cabin. It features a new interior with a driver's airbag shock-absorbing seat to reduce fatigue on demanding routes. Climate is managed via automatic climate control, while connectivity and control are facilitated through a 10.1-inch multimedia screen and a multifunctional steering wheel with integrated cruise control and multimedia buttons. Safety and visibility are enhanced with LED headlights, an integrated rearview mirror, a reverse image camera system, and a 7-inch color LCD screen combination instrument panel. Additional comforts include power windows, central locking, sunshade visors, and curtains, creating a productive and comfortable workspace.
2. Robust Chassis and Durable Tank Assembly
The core of this sewage suction and cleaning vehicle is its Class II original chassis, known for durability and load-bearing capacity. Upon this stable platform, a high-strength tank body is mounted. The tank is constructed for longevity and is designed to handle corrosive and abrasive materials commonly associated with sludge and wastewater transport. This solid foundation ensures stability during both travel and intensive on-site operations.
3. High-Power, Dual-Function Cleaning and Suction System
This model excels as a true combined suction and cleaning truck. Its operational prowess comes from the integration of a high-power vacuum suction pump, which generates a high vacuum degree for rapid and thorough extraction of liquids, sludges, and semi-solids. Simultaneously, the independently mounted high-pressure water pump delivers powerful jets for flushing and dredging blockages in pipes and drains. This dual-system approach allows for sequential or integrated tasks such as high-pressure washing followed by immediate vacuum recovery of dislodged waste.
4. Flexible Configuration and Optional Features
Understanding diverse operational needs, the vehicle platform offers significant flexibility. Key components, including specific models of the high-pressure water pump or enhanced suction accessories, can be optionally installed at a discounted price. This allows buyers to customize the 8 cubic vacuum sewer truck to their specific duty cycles, whether for routine municipal sewage suction or more specialized industrial waste handling.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement Batch | 384 |
Product Name | Product model | SGW5140GQWSX6 | |
Total mass (Kg) | 14000 | Tank volume (m3) | 8 |
Rated load capacity (Kg) | 5420,5355 | Dimensions (mm) | 7740x2280x3340 |
Curb weight (Kg) | 8450 | Maximum speed (Km/h) | 89 |
Cab capacity (persons) | 2,3 | Axle load (Kg) | 4850/9150 |
Approach Angle/Departure Angle (degrees) | 17/12 | Front suspension/rear suspension (mm) | 1200/2220,1240/2180 |
remarks | This vehicle is mainly used for sewage discharge and dredging, with the main devices being tanks and pumps Dimensions of the tank body (total length x diameter) (mm): 5000x1800, with the front 1800mm of the tank body being a clean water tank and the rear 3200mm of the tank body being a sewage tank The total volume of the sewage tank is 7 cubic meters, the effective volume is 6.69 cubic meters, the medium is liquid waste, and the density is 800 kilograms per cubic meter The total volume of the clear water tank is 4.1 cubic meters, the effective volume is 4 cubic meters, the medium is water, and the density is 1000 kilograms per cubic meter The sewage tank and clean water tank cannot be loaded and transported at the same time, and only the chassis wheelbase (mm): 3800 is used. The side protection and lower rear protection are both made of Q235 material, with welded connections for the side protection and bolted connections for the lower rear protection. The cross-sectional size of the lower rear protection (mm) is 120x60, and the height of the lower rear protection above the ground is 480mm ABS system manufacturer: Xi'an Zhengchang Electronics Co., Ltd., model: ZQFB-V. with a rear extension of 520mm Optional cab style with chassis, optional different LOGO font styles, optional step appearance, optional wheel rim appearance, optional pattern appearance, and air deflector appearance style. | ||
【Chassis Technical Parameters】 | |||
Chassis Model | SX1140NP6341 | Chassis name | Truck chassis |
Trademark name | Shangqi brand | manufacturing enterprise | Shaanxi Automobile Holding Group Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 3400,3800,4200 | ||
Tire specifications | 8.25R20 16PR | ||
Number of steel plate springs | 9/11+5,9/11+8 | Front wheel base (mm) | 1790,1830,1770 |
Fuel type | diesel oil | Rear wheel base (mm) | 1650,1660 |
Emission standards | GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
D40TCIF1 YCS04180-68 D36TCIF1 YCY30170-61 | Kunming Yunnei Power Co., Ltd Guangxi Yuchai Machinery Co., Ltd Chengdu Yunnei Power Co., Ltd Guangxi Yuchai Machinery Co., Ltd | 4052 4156 3610 2970 | 185 180 177 170 |

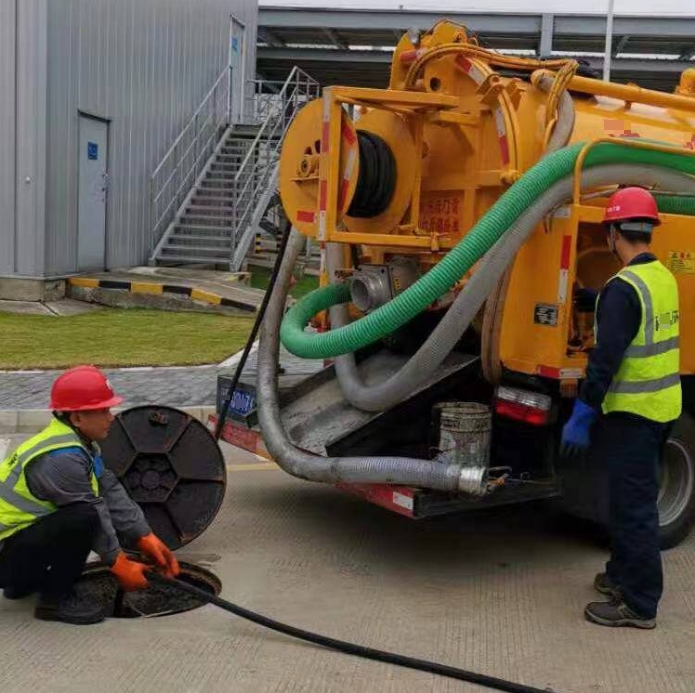

Primary Application Scenarios
Municipal Sanitation and Urban Management
This vehicle is an ideal municipal sanitation vehicle for city and town public works departments. Its primary role is in the vacuum sewage suction from septic tanks, sewer maintenance holes, and treatment plants. The high-pressure cleaning function is perfect for dredging blocked storm drains, cleaning public markets, and flushing urban streets and pavements, providing a comprehensive solution for urban cleanliness and infrastructure maintenance.
Industrial and Commercial Facility Maintenance
Factories, processing plants, large commercial complexes, and agricultural facilities benefit greatly from this truck's versatility. It is used for industrial wastewater lagoon cleaning, spill recovery, suction of settled solids from sedimentation tanks, and cleaning of industrial drainage systems. The ability to handle sludge, feces, and wastewater makes it indispensable for waste management in food processing, livestock, and manufacturing sectors.
Emergency Response and Service Contracting
The vehicle's power and autonomy make it highly effective for emergency services, such as responding to sewer overflows, floodwater removal, or sanitation emergencies. Furthermore, it serves as a perfect flagship unit for environmental service contractors who require a single, professional-grade truck capable of offering a full range of sewage suction and high-pressure cleaning services to a varied client base.
Frequently Asked Questions (FAQ)
Q1: How do the features in the driver's cabin contribute to operational efficiency?
A: The premium driver's cabin is directly linked to productivity. The airbag shock-absorbing seat and automatic climate control reduce operator fatigue, enabling longer, more focused work shifts. The multifunctional steering wheel with cruise control aids in long-distance transit between sites. Advanced displays like the reverse image camera and LCD combination instrument panel enhance situational awareness and vehicle monitoring, leading to safer, more efficient operations and reduced risk of on-site accidents.
Q2: What are the maintenance advantages of using a Class II original chassis?
A: Utilizing a Class II original chassis from a major manufacturer like Shaanxi Automobile ensures widespread availability of mechanical parts, standardized service procedures, and extensive dealer support networks. This translates to easier scheduled maintenance, faster repair times, and lower lifetime servicing costs compared to highly customized or lesser-known chassis platforms, maximizing the vehicle's uptime.
Q3: Can the vehicle's cleaning and suction systems be customized for specific waste types?
A: Yes, the platform is designed for customization. While it comes standard with high-performance systems, the high-pressure water pump pressure ratings, hose lengths, nozzle types, and even certain vacuum system components can be optionally installed to tailor the truck for specific materials, such as highly viscous industrial sludge or for operations requiring extra-long reach for pipeline dredging.
Q4: What safety features are integrated beyond the advanced driver cabin?
A: In addition to cabin safety features like the driver's airbag, the vehicle incorporates essential industrial safety systems. These typically include vacuum system pressure relief valves, tank overfill prevention devices, emergency stop controls for all powered functions, and high-intensity warning lights. The LED headlights and illuminated emblem also provide superior visibility for roadside work, enhancing safety for operating crews and the public.
