Suction Truck
1. Multi-Purpose Application

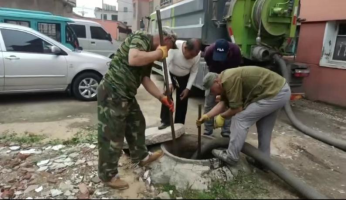

Widely used for septic tank cleaning, municipal sewage treatment, industrial waste liquid collection, and pipeline maintenance—ideal for both urban and rural environments.
2. Efficient High-Pressure Cleaning

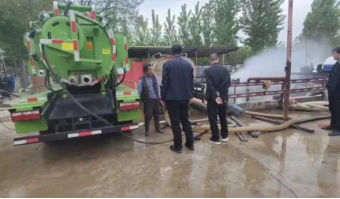

Equipped with a powerful high-pressure water system that effectively flushes and unclogs pipelines, ensuring thorough cleaning before suction.
3. Strong Vacuum Suction System
Features a heavy-duty vacuum pump with excellent suction power, enabling rapid collection of sludge, sewage, and dense waste materials.
4. Heavy-Duty Tires for Tough Terrain
Fitted with thick, wear-resistant tires that provide enhanced stability and durability, suitable for construction sites, muddy roads, and remote areas.
5. Intelligent & Easy Operation
Designed with an intelligent control system and user-friendly interface, allowing operators to manage suction, discharge, and cleaning functions with ease.
6. Durable Tank & Rust Resistance
The 11-cubic-meter tank is made of high-strength corrosion-resistant steel, ensuring long service life even under harsh working conditions.

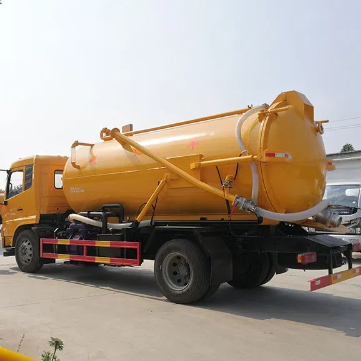

11 Cubic Meters Sewage Suction Truck – High-Performance Vacuum Sewer Truck
Product Overview

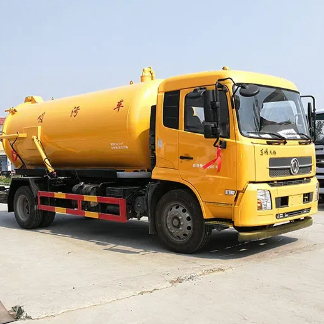

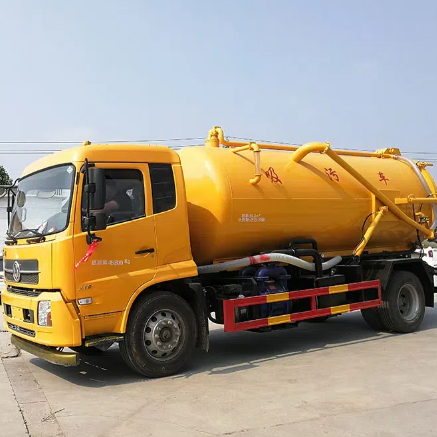

The Xiangnongda brand SGW5160GXWDF6 11 Cubic Meter Sewage Suction Truck is a state-of-the-art solution designed for efficient municipal and industrial waste management. Mounted on a robust Dongfeng chassis, this vacuum sewer truck combines powerful suction capabilities with durable construction to handle liquid sewage, sludge, and other waste materials. With a generous tank volume of 11.1 cubic meters, it ensures fewer trips and higher productivity, making it an ideal choice for contractors, municipalities, and waste treatment facilities
Key Features
1. Powerful Vacuum System for Efficient Waste Collection
Equipped with a high-performance vacuum pump, this sewage suction truck delivers exceptional suction power to rapidly extract sewage sludge and liquid waste. The pump is designed to handle dense materials, ensuring quick and thorough cleaning of septic tanks, drainage systems, and industrial pits. The intelligent control system allows operators to manage suction and discharge functions with ease, improving operational efficiency.
2. Durable Tank Construction with Corrosion Resistance

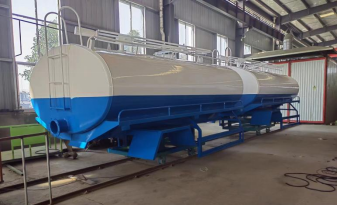

The tank body is manufactured from high-strength steel with anti-corrosion coatings, ensuring longevity even when exposed to harsh waste materials. With a capacity of 11.1 cubic meters and a medium density of 800 kg/m³ for liquid sewage, it offers an optimal balance between payload and maneuverability. The tank’s seamless design prevents leaks and minimizes maintenance requirements.
3. Reliable Dongfeng Chassis with Heavy-Duty Components
The truck is built on the DFH1160BX1 Dongfeng truck chassis, known for its reliability and durability in demanding conditions. Key chassis features include:
Engine and Transmission: Powerful diesel engine compliant with Euro emission standards (as per configuration) paired with a smooth-shifting gearbox.
Axle Configuration: 2-axle design with a rear axle load capacity of 10600 kg, ensuring stability during transport.
Tire Options: Available with heavy-duty tires such as 9.00R20 16PR or 10.00R20 18PR, providing excellent traction on rough terrain.
Suspension System: Multi-leaf spring suspensions (e.g., 11/11+10) for enhanced load-bearing capacity and ride comfort.
4. High-Pressure Cleaning Functionality
Beyond suction, this sewage suction sanitation truck integrates a high-pressure water system for cleaning pipelines and tanks. The rush pipe feature enables operators to unclog blockages and flush residues, making it a versatile tool for sewer maintenance and industrial cleaning tasks.
5. Customizable Options to Meet Diverse Needs
We understand that every project has unique requirements. Therefore, this 11 cubic meter sewage truck supports customizable volume and additional features such as:
Extended hose lengths
Different pump types (e.g., diaphragm or vane pumps)
Optional front/rear sprinklers
Personalized tank colors and company logos
Our engineering team works closely with clients to tailor the vehicle to specific applications.
6. Safety and Intelligent Operation
The truck is equipped with advanced safety features, including:
Rearview camera for improved visibility during reversing.
Intelligent control panel for real-time monitoring of suction pressure and tank level.
Emergency stop buttons and overfill protection.
These elements ensure safe and reliable operation even in challenging environments.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Product model | SGW5160GXWDF6 |
Product Name | sewage suction truck |
Tank volume (m3) | 11.1 |
Total mass (Kg) | 16200 | External dimensions (mm) | 7450×2510×3150 |
Rated load capacity (Kg) | 8680,8615 | Axle load (Kg) | 5600/10600 |
Curb weight (Kg) | 7390 | Total mass of quasi trailer (Kg) | ×× |
Cab capacity (persons) | 2,3 | Front/rear suspension (mm) | 1430/2070 |
Approach Angle/Departure Angle (degrees) | 17/13 | Maximum speed (km/h) | 89 |
remarks | Special equipment for this vehicle: tank body and pump, mainly used for sewage sludge suction, cleaning, loading and unloading, etc. Transport medium: liquid sewage: medium density: 800 kg/cubic meter. Effective volume of tank body: 11.1 cubic meter. External dimensions of tank body (straight section length x diameter) (mm): 4200 × 1800. ABS model/manufacturer: 3631010-C2000/Dongke Knorr Commercial Vehicle Braking System (Shiyan) Co., Ltd., ABS 8/Dongke Knorr Commercial Vehicle Braking System (Shiyan) Co., Ltd., 4460046450/Weibo Automotive Control System (China) Co., Ltd. The vehicle only selects an axle distance of 3950mm. Protection: Q235 is used for both side and rear protective materials, and the connection method with the vehicle is welding. The ground clearance height of the protective gear is 420mm, with a cross-section of 120mmX60mm. An optional driver's cab can be installed with the chassis | ||
【Chassis Technical Parameters】 | |||
Chassis Model | DFH1160BX1 | Chassis name | Truck chassis |
Trademark name | Dongfeng brand | manufacturing enterprise | Dongfeng Commercial Vehicle Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 5100,3950,4500,4700 | ||
Tire specifications | 9.00R20 16PR,10.00R20 18PR,275/80R22.5 18PR | ||
Number of steel plate springs | 11/11+10,11/10+8,8/10+8 | Front wheel base (mm) | 1815,1934,1860 |
Fuel type | diesel oil | Rear wheel base (mm) | 1840,1800,1820 |
Emission standards | GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
DDi50E220-60 D4.0NS6B185 D4.0NS6B195 DDi47E210-60 | Dongfeng Commercial Vehicle Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Commercial Vehicle Co., Ltd | 5000 4000 4000 4750 | 162 136 143 154 |

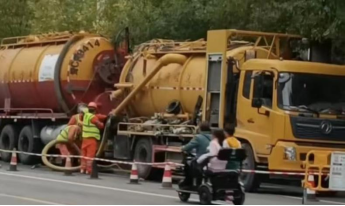

Wide Range of Applications
This sewage suction sanitation truck is engineered for versatility, making it suitable for:
Municipal Sewage Management: Cleaning sewer networks, manholes, and pumping stations.
Industrial Waste Collection: Removing sludge and liquid waste from factories, refineries, and treatment plants.
Septic Tank Services: Efficient emptying of residential and commercial septic tanks.
Emergency Spill Response: Rapid recovery of hazardous liquid spills.
Agricultural Waste Handling: Transporting liquid manure or other farm effluents.
Its combination of high-pressure cleaning and vacuum suction allows operators to perform both maintenance and collection tasks with a single vehicle, reducing equipment costs and labor.
Why Choose Our 11 Cubic Meter Sewage Suction Truck?
Proven Performance: With a strong presence in markets across Africa, Southeast Asia, Central Asia, and the Middle East, our trucks are trusted for their reliability.
Quality Certifications: Manufactured under ISO 9001:2015 quality management systems, ensuring consistent build quality.
After-Sales Support: We provide 24/7 online technical assistance, spare parts availability, and door-to-door delivery options.
Cost-Effective Customization: Tailor the truck to your exact specifications without exorbitant costs.
Frequently Asked Questions (FAQ)
Q1: What is the minimum order quantity for this sewage suction truck?
A: We accept orders starting from 1 unit. For bulk purchases, we offer competitive discounts and prioritized production slots.
Q2: Can the tank volume be customized to less than 11 cubic meters?
A: Yes, we support customizable sewage truck volumes. Whether you need 8m³, 10m³, or 12m³, our engineers can adjust the tank size to match your requirements.
Q3: What is the lead time for production and delivery?
A: Standard lead time is 15–25 working days after order confirmation. Shipping time depends on your location; we arrange sea freight via container, bulk vessel, or RoRo.
Q4: Do you provide training for operation and maintenance?
A: Absolutely. We offer comprehensive technical documentation, online video tutorials, and optional on-site training by our engineers to ensure your team can operate and maintain the truck efficiently.
Q5: What warranty do you offer on the sewage suction truck?
A: We provide a 12-month warranty on major components, including the vacuum pump, tank, and chassis parts. Extended warranties are available upon request.
Contact Us for More Information
If you are looking for a reliable, high-capacity sewage suction truck that combines performance, durability, and customization, the Xiangnongda SGW5160GXWDF6 11 Cubic Meter model is your ideal choice. Contact our sales team today to discuss your specific needs and receive a competitive quote.
