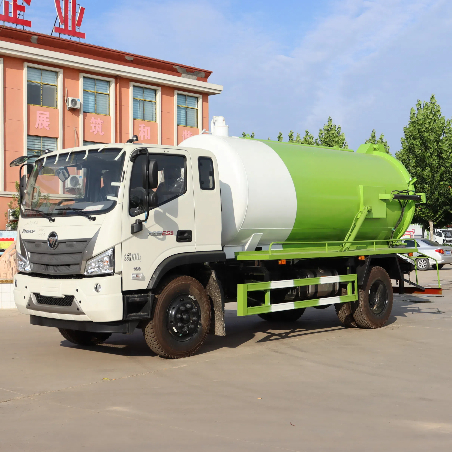

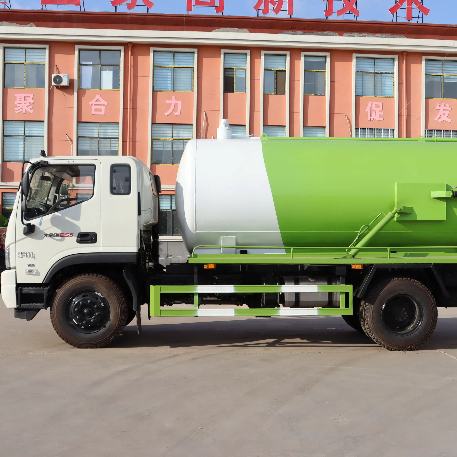

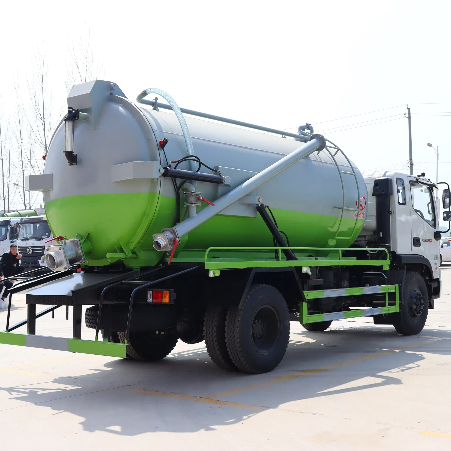

Sewage Vacuum Truck
1. Optimal Balance of Capacity and Maneuverability
An 11m³ tank strikes the perfect balance between substantial waste hauling capacity and excellent urban maneuverability, allowing efficient operation in both confined city streets and larger suburban or industrial sites.
2. Enhanced Operational Efficiency with Lower Initial & Operational Costs
Compared to larger models, it offers significant savings on chassis costs, fuel consumption, and maintenance, while still providing high productivity. It delivers a faster return on investment for many municipal and contracting businesses.
3. Versatile Performance for Diverse Applications
Equipped with a powerful vacuum pump and sufficient tank volume, it effectively handles a wide range of duties—from routine septic tank cleaning and catch basin maintenance to industrial lagoon cleaning and emergency spill response.
4. Superior Accessibility for Challenging Job Sites
Its compact footprint and shorter turning radius allow access to tight spaces—such as narrow lanes, crowded residential areas, and congested construction sites—where larger trucks cannot operate.
5. Reduced Operational Footprint and Environmental Impact
The efficient size minimizes road wear, noise disturbance, and emissions per job. Advanced models often feature sealed systems to prevent leaks and odors, contributing to cleaner, more environmentally friendly operations.
6. Flexible Configuration and Easy Upgradability
The platform readily integrates with optional equipment like high-pressure water jetting systems, additional hose reels, or digital monitoring tools, allowing customization to specific operational needs without compromising core performance.
A vacuum suction truck is a specialized sanitation vehicle designed to collect, transport, and clean sludge, sewage, and fecal waste in an enclosed system, effectively preventing secondary pollution. Alongside sprinkler and sweeping trucks, it forms one of the three essential vehicle types in modern sanitation operations.
Kind reminder: The entire vehicle can be sprayed in different colors
The detailed parameters of the entire vehicle are as follows ↓
[Vehicle technical parameters] [Technical parameters of the entire vehicle] | |||
Product trademark
| XiangNong da card
| Announcement batch
| 365 (Extended)
|
product name
| product model
| SGW5163GXWF | |
gross mass (Kg)
| 16000 | Tank volume (m3)
| 10.52 |
Rated load mass (Kg)
| 8405 | Overall dimensions (mm)
| 7700,8050×2500×3300 |
Preparation mass (Kg)
| 7400 | axle weight (Kg)
| 5400/10600 |
Number of passengers (person)
| 3 | Top vehicle speed (Km/h)
| 80 |
Approach angle / departure angle of (°)
| 20/11,20/10 | Front suspension / rear suspension (mm)
| 1235/2265,1235/2315 |
remarks remarks | The vehicle special device: tank body and pump, mainly used for sewage sludge suction, clear fishing, loading and unloading, etc. Transportation medium: liquid dirt, medium density: 800 kg / m 3; total capacity of tank: 10.52 m 3, effective volume: 10.5 m 3. Length (mm) / wheelbase (mm) / tank shape size (straight length diameter) (mm) correspondence: 8050 / 4500 / 47001700,7700 / 42000 / 44001700. Protective material: Q235, connection mode: side and rear lower protection are welded connection, rear lower protection section size (mm): 12050. rear lower protection height from the ground (mm):440.ABS model is CM4XL-4S / 4M, manufactured by Guangzhou Ruili Automotive Electronics Co., LTD., select the fuel tank position with the chassis. Select the pipe port size, expand the upper flip frame. Select the fresh air grille along with the chassis. Optional new front grille and new logo.
| ||
[Chassis technical parameters] | |||
Chassis model
| BJ5164JQZHPDD-01 | Chassis name
| Car crane chassis
|
brand name
| Fukuda card
| manufacturing enterprise
| Beiqi Foton Motor Co., Ltd
|
number of axles
| 2 | Number of tires
| 6 |
wheel base (mm)
| 4200,4500,3700,3900 | ||
tyre size
| 10.00R20 18PR,9.00R20 16PR | ||
Number of steel plate spring sheets
| 10/12+9 | front gauge (mm)
| 1728,1740,1760,1780 |
Fuel types
| diesel oil
| rear track (mm)
| 1760,1780,1728,1740 |
Emission basis standard
| Country GB3847-2005, GB17691-2018
| ||
engine type
| Engine production enterprise
| displacement (ml)
| power (Kw)
|
WP3NQ160E61 WP4.1NQ190E61 D30TCIF1 | Weichai Power Co., LTD Weichai Power Co., LTD Kunming Yunnei Power Co., LTD
| 2970 4088 2977 | 118 140 125 |
Product Usage Precautions:
Ensure the oil level in the oil–air separator remains above the midpoint of the sight glass or the tee junction of the oil line. Failure to do so may result in vacuum pump damage.
Use antifreeze engine oil when the ambient temperature falls below 0°C. For temperatures between 0°C and 10°C, standard diesel engine oil is recommended.
If sewage or slurry is accidentally drawn into the pump, clean the system immediately and refill it with new engine oil.
Only air and lubricating oil are permitted to enter the pump. Entry of any other substances will void responsibility for resulting damage.
Do not use this pump to convey corrosive media (e.g., acids, concentrated alkalis) or any explosive gases.
The pictures of commonly used accessories are as follows ↓

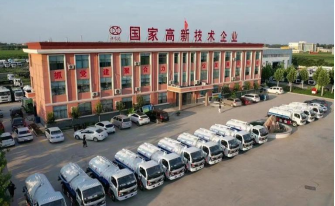

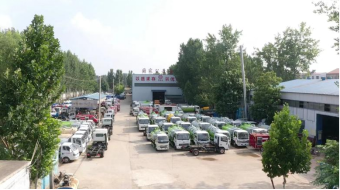

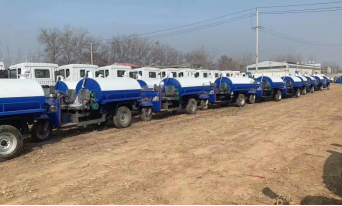

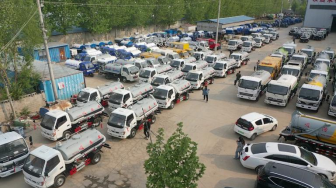

Company scale display (partial) pictures ↓

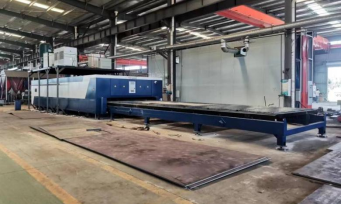

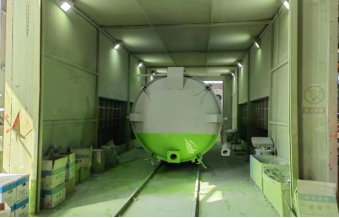

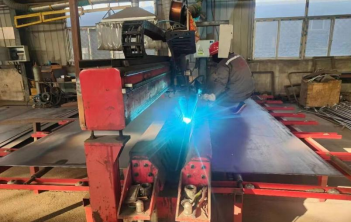

Workshop process pictures (partial) display ↓
FAQ
Q: Are you the manufacturer of the equipment?
A: Yes, we operate as a direct factory with over 20 years of experience in professional manufacturing.
Q: What are your accepted payment terms?
A: We accept T/T in advance or L/C at sight. A deposit is required, with the remaining 70% due before delivery. We will provide photos of the finished products and packaging for your confirmation prior to final payment.
Q: What delivery terms do you offer?
A: We support EXW, FOB, CFR, and CIF, depending on your preference and logistics arrangement.
Q: What is the warranty policy for the equipment?
A: The main machine is covered by a 1-year warranty. During this period, any faulty accessories will be replaced free of charge with new ones.
Q: What is the typical delivery time?
A: For in-stock items, delivery usually takes 5–10 days. For out-of-stock or custom orders, it takes approximately 15–20 days, depending on the order quantity.
Q: How do you ensure a long-term and positive business relationship?
A: We maintain consistent product quality and competitive pricing to protect our customers' interests and ensure mutual long-term success.
Q: Why should customers choose your company over other suppliers?
A: Based in Jining, Shandong, we specialize in manufacturing environmental protection equipment and machinery. Backed by an experienced professional team, our products have been successfully exported to numerous countries and regions.
Q: Do you perform quality inspections before shipment?
A: Yes, we conduct 100% testing on all goods prior to delivery to ensure they meet quality standards.
