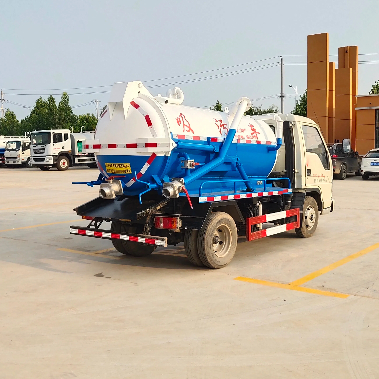

Efficient 2 Cubic Sewage Suction Truck for Industrial and Municipal Waste Management
In the world of environmental sanitation and industrial waste management, efficiency, durability, and regulatory compliance are non-negotiable. The 2 Cubic Sewage Suction Truck is engineered to meet the demanding needs of municipal authorities, waste treatment facilities, and industrial plants. Built on a reliable Foton chassis and equipped with advanced suction technology, this compact yet powerful sewage suction truck ensures rapid collection and safe transportation of sludge, sewage, and industrial effluent.
Key Features of the 2 Cubic Sewage Suction Truck
Robust Chassis and Powertrain

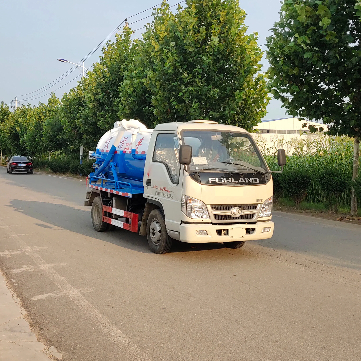

The vehicle is built on a Foton Brand BJ1045V9JB3-55 truck chassis, a name synonymous with reliability in the commercial vehicle sector. This 4x2 configuration is powered by a diesel engine that complies with stringent emission norms, ensuring both performance and environmental responsibility. The manual gearbox provides the operator with precise control, which is essential when maneuvering in tight urban environments or on uneven construction sites.
Chassis Manufacturer: Beiqi Foton Motor Co., Ltd
Tire Specifications: 6.00R15 10PR (6 tires)
Maximum Speed: 110 Km/h
Fuel Type: Diesel
Optimal Tank Capacity and Dimensions

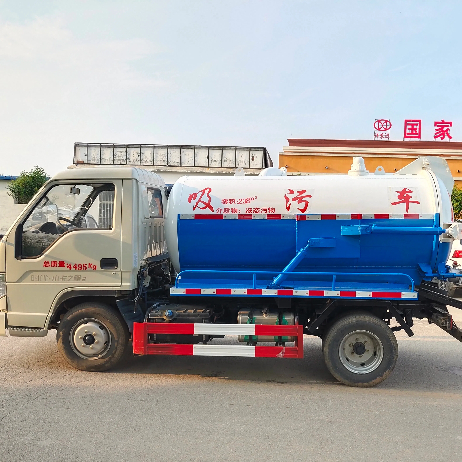

With a total mass of 4,495 Kg and a rated load capacity of 1,815 Kg, this model strikes the perfect balance between payload and maneuverability. The tank body boasts an effective volume of 2.38 cubic meters, with external dimensions of 2500 mm in straight section length and 1100 mm in diameter. This 2.38 CBM capacity is ideal for small to medium-scale operations, allowing for efficient waste collection without the bulk of larger trucks.
High-Performance Pumping System
At the heart of this fecal suction truck lies a sophisticated water circulation pump. Unlike conventional systems, this pump features a simple yet durable structure that enhances suction power significantly. It is designed to resist heating, enabling continuous operation even during prolonged use. This makes it an invaluable asset for septic tank cleaning and industrial waste suction tasks where downtime is not an option.
Advanced Safety and Operational Features
Safety is paramount in waste management. This vacuum sewage truck is equipped with an anti-overflow valve that effectively prevents liquid overflow during filling. For enhanced operational safety, it can also be fitted with a liquid full alarm device. This feature alerts the operator when the tank reaches capacity, preventing spills and ensuring compliance with environmental regulations.
Durable Construction and Compliance
The vehicle meets the Announcement Batch 345 (Extended) standards, ensuring it is road-legal and compliant with international transport regulations. The side and rear protective devices are constructed from Q235 material using a welding connection, with a rear protection cross-sectional size of 50mm x 100mm and a ground clearance of 450mm. This robust build ensures longevity and safety on the road.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement Batch | 345 (Extended) |
Product Name | sewage suction truck | Product model | SGW5045GXWF |
Total mass (Kg) | 4495 | Tank volume (m3) | 2.38 |
Rated load capacity (Kg) | 1815 | Dimensions (mm) | 4850×1800×2380 |
Curb weight (Kg) | 2550 | Maximum speed (Km/h) | 110 |
Cab capacity (persons) | 2 | Axle load (Kg) | 1710/2785 |
Approach Angle/Departure Angle (degrees) | 18/16 | Front suspension/rear suspension (mm) | 1115/1135 |
remarks | Special functions and device description: The vehicle's dedicated device is a tank and pump, mainly used for sewage discharge and dredging; Optional component name and related description: front logo and grille style can be selected along with the chassis; Other instructions: Only equipped with a wheelbase of 2600mm; ABS manufacturer: Guangzhou Ruili Kemi Automotive Electronics Co., Ltd; The material used, connection method, and main dimensional parameters of the rear protective device (cross-sectional size and ground clearance height): Q235 material welding connection is used for the side rear protection, the cross-sectional size of the rear protection (mm) is 50 × 100, and the ground clearance height of the rear protection (mm) is 450; ABS model: CM4YL; Effective volume of tank body (cubic meter), external dimensions of tank body (mm): Effective volume of tank body: 2.38 cubic meters, external dimensions of tank body (straight section length x diameter) (mm): 2500 x 1100; Optional fuel tank position with chassis. | ||
【Chassis Technical Parameters】 | |||
Chassis Model | BJ1045V9JB3-55 | Chassis name | Truck chassis |
Trademark name | Futian brand | manufacturing enterprise | Beiqi Foton Motor Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 2600,2850 | ||
Tire specifications | 6.00R15 10PR | ||
Number of steel plate springs | 7/5+3,7/5+2,3/5+2,2/3+2 | Front wheel base (mm) | 1345 |
Fuel type | diesel oil | Rear wheel base (mm) | 1292 |
Emission standards | GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
Q23-95C60 Q23-95E60 | Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd | 2300 2300 | 70 70 |
Versatile Application Scenarios
The versatility of the 2 Cubic Sewage Suction Truck makes it a preferred choice across various sectors:
Municipal Sanitation: Ideal for urban sewage suction, cleaning sewer networks, and maintaining public hygiene.
Industrial Waste Management: Efficiently handles industrial waste suction from factories, treatment ponds, and holding tanks.
Septic Tank Services: Perfect for contractors specializing in septic tank cleaning, offering the right size for residential and commercial properties.
Agricultural and Rural Applications: Compact enough to navigate rural roads for farm waste collection and lagoon cleaning.
Construction Sites: Effective for dewatering excavations and removing slurry generated during construction activities.
Why Choose This 2.38 CBM Sewage Suction Truck?
Compact Maneuverability: With dimensions of 4850×1800×2380 mm and a wheelbase of 2600mm, it navigates narrow streets and confined job sites with ease.
Cost-Effective Operation: The simple structure of the pump translates to lower maintenance costs and fewer repairs.
Environmental Compliance: The anti-overflow mechanism and optional alarm system help prevent environmental contamination.
Customization Options: Buyers can select front logo and grille styles according to chassis availability, and the fuel tank position is optional.
Frequently Asked Questions (FAQ)
Q1: What is the exact tank volume of this sewage suction truck?
A1: The effective volume of the tank body is 2.38 cubic meters. The external dimensions of the tank are 2500 mm in length (straight section) by 1100 mm in diameter, providing ample capacity for most medium-duty suction tasks.
Q2: How does the anti-overflow valve work, and is it standard?
A2: Yes, the anti-overflow valve is a standard safety feature. It automatically closes the intake line when the tank reaches its maximum capacity, preventing liquid from being sucked into the vacuum pump or overflowing onto the ground. For added convenience, it can be combined with an optional liquid full alarm device to alert the operator.
Q3: What type of chassis is this vehicle built on, and is it reliable?
A3: This sewage suction truck is built on a Foton Brand BJ1045V9JB3-55 truck chassis. Foton is a leading Chinese commercial vehicle manufacturer known for durable and reliable chassis. It features a 4x2 drive, 6.00R15 tires, and a diesel engine, ensuring robust performance and easy parts availability.
Q4: Can this truck be used for continuous operation in hot weather?
A4: Absolutely. The water circulation pump is specifically designed with a simple structure that resists heating. This allows the pump to maintain strong suction power even during extended periods of continuous operation without the risk of overheating or performance degradation.
