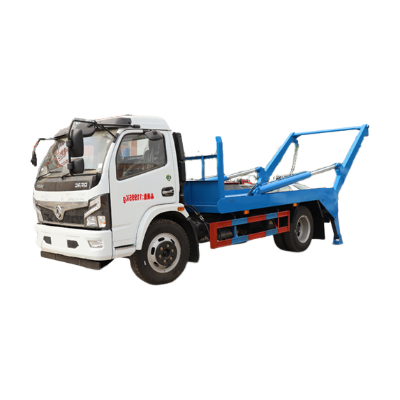

Swing Arm Garbage Truck
1. Energy-Efficient and Economical Operation
The swing arm garbage truck is designed with an optimized hydraulic system that consumes less fuel while delivering powerful lifting performance. This energy-efficient operation significantly reduces long-term operational costs, making it a cost-effective choice for municipal and private waste management fleets.
2. User-Friendly Controls for Easy Operation
Equipped with an intuitive hydraulic control system, this detachable container truck allows operators to complete loading and unloading maneuvers with minimal training. The simplified controls reduce human error and increase productivity during daily collection routes.
3. Compact Design for Small Workspace Maneuverability
With its compact footprint and articulated swing arm mechanism, this vehicle requires minimal workspace to operate. It can easily maneuver in narrow alleys, crowded residential areas, and tight urban environments where larger trucks cannot access, ensuring comprehensive waste coverage.
4. Flexible and Efficient Container Handling
The swing arm skip loader enables one driver to independently load, unload, and transport multiple detachable containers in a single route. This "one truck, multiple bins" capability maximizes fleet efficiency and reduces the need for additional vehicles.
5. Ideal for Integration with Garbage Transfer Stations
Specifically designed for seamless cooperation with waste transfer stations, this hook loader truck efficiently shuttles between collection points and processing facilities. Its compatibility with standard skip containers makes it an indispensable asset for multi-stage waste management systems.
6. Perfect for Densely Populated Urban Areas
Engineered to excel in challenging environments like new residential communities and old city streets, this swing arm garbage truck delivers reliable performance where space is limited and collection demands are high. Its flexibility ensures uninterrupted service even in the most congested urban settings.
A 5-ton swing arm garbage truck can be equipped with a 6-square pit
type garbage hopper.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement batch | 345 (Change) |
Product Name | swing arm garbage truck | Product model | SGW5120ZBSF |
Total mass (Kg) | 11995 | Tank volume (m3) | |
Rated load capacity (Kg) | 7000 | External dimensions (mm) | 6880×2450×3050 |
Curb weight (Kg) | 4800 | Maximum speed (km/h) | 103 |
Cab capacity (persons) | 3 | Axle load (Kg) | 4350/7645 |
Approach Angle/Departure Angle (degrees) | 21/11 | Front/rear suspension (mm) | 1130/1950 |
remarks | Optional cab with chassis. Q235 material welding connection is used for side and rear protection. The size of the rear protection section (mm) is 200 × 50, and the height of the rear protection above the ground (mm) is 490. Only 3800mm wheelbase is optional ABS system manufacturer, model: Xiangyang Dongfeng Longcheng Machinery Co., Ltd., ABS/ASR-24V-4S/4M. Engine model/fuel consumption value (L/100km) Correspondence: Q28-130E60/20.1, YCY30165-60/20.3, CY4SK261/20.3, CY4SK361/20.3, YCY24140-60/20.1, ZD30D16-6N/20.3, NV30-C6D/20.3, H30-165E60/20.3, CY4SK161/20.3, NV30-C6G/20.3, NV30-C6C/20.3, D4.0NS6B170/20.3, D4.0 NS6B185/20.3, YCS04190-68/20.3, D4.0NS6B160/20.1, CY4BK261/20.1, D25TCIF1/20.3, D30TCIF1/20.3, D40TCIF1/20.3, D45TCIF1/20.3. Only these 20 engines are optional. They are mainly used for garbage collection and transportation, and the main specialized device is the swing arm. 5. The vehicle is equipped with a driving recorder with satellite positioning function | ||
【Chassis Technical Parameters】 | |||
Chassis Model | EQ1125SJ8CDC | Chassis name | Truck chassis |
Trademark name | Dongfeng brand | manufacturing enterprise | Dongfeng Motor Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 3800,3950,4050,4100,4400,3600,4700 | ||
Tire specifications | 245/70R19.5,8.25R20,245/70R19.5 16PR,8.25R20 16PR,8.25R20 14PR,255/70R22.5 16PR | ||
Number of steel plate springs | 8/10+7,12/12+9 | Front wheel base (mm) | 1745,1802,1820,1842,1765,1890 |
Fuel type | diesel oil | Rear wheel base (mm) | 1630,1650,1800,1720 |
Emission standards | GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
YCY30165-60 Q28-130E60 D30TCIF1 CY4SK361 NV30-C6D ZD30D16-6N D25TCIF1 YCY24140-60 CY4SK161 CY4SK261 NV30-C6G D4.0NS6B185 CA4DD2-18E6-30 YCS04190-68 D40TCIF1 D4.0NS6B195 D4.0NS6B170 CY4BK261 H30-165E60 D4.0NS6B160 NV30-C6C Q28-156E60 CA4DB1-14E68 CA4DB2A16E68 CA4DB2-17E68 | Guangxi Yuchai Machinery Co., Ltd Anhui Quanchai Power Co., Ltd Kunming Yunnei Power Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Dongfeng Light Engine Co., Ltd Kunming Yunnei Power Co., Ltd Guangxi Yuchai Machinery Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Dongfeng Cummins Engine Co., Ltd China FAW Group Co., Ltd Guangxi Yuchai Machinery Co., Ltd Kunming Yunnei Power Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Anhui Quanchai Power Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Anhui Quanchai Power Co., Ltd China FAW Group Co., Ltd China FAW Group Co., Ltd China FAW Group Co., Ltd | 2970 2800 2977 3856 2968 2953 2499 2360 3856 3856 2968 4000 3230 4156 4052 4000 4000 3707 3000 4000 3093 2800 2207 2440 2440 | 121 96 125 125 120 120 110 103 135 125 115 136 132 140 135 143 125 100 120 118 120 115 100 118 125 |
