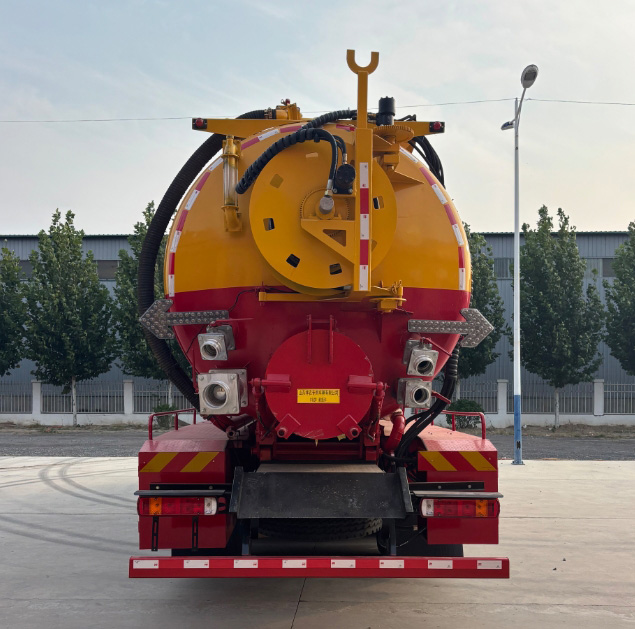

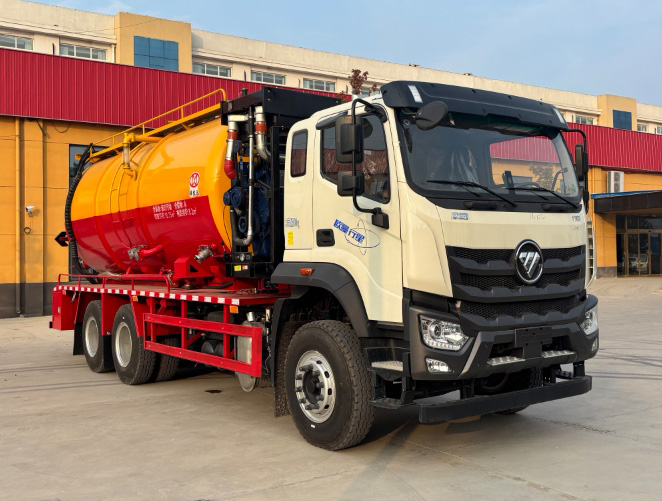

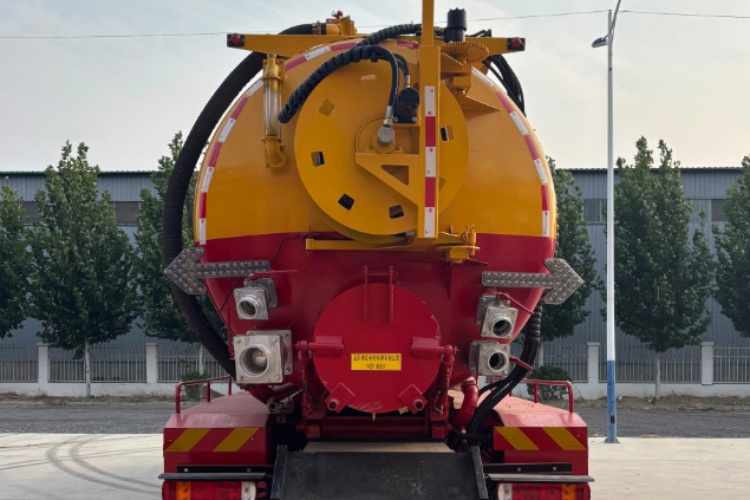

10 cubic cleaning and suction truck
1. Large capacity design, efficient operation
a. 10 cubic meters of large capacity: The tank has a large capacity and can load more sewage, sludge, or cleaning water at a time, reducing the number of back and forth dumping and improving operational efficiency.
b. Dual function integration: The cleaning and suction truck has both high-pressure cleaning and vacuum suction functions, making it versatile and saving equipment procurement and labor costs.
2. Strong high-pressure cleaning ability
a. High pressure pump system: The cleaning the suction truck is equipped with a high-pressure water pump (with a pressure of up to 20-30MPa), which can strongly flush stubborn sediments in areas such as pipelines, septic tanks, and sewers.
b. Adjustable nozzle: the cleaning and suction vehicle supports switching of multiple nozzles to adapt to different cleaning scenarios (such as dredging, washing, spray dust reduction, etc.).
This cleaning and suction truck is mainly used for sewage discharge and dredging, with the main devices being the tank body and cleaning and suction assembly.
The tank of the pipeline dredging vehicle has a lifting function, and the external dimensions of the tank are (total length x diameter) (mm): 6000 (straight section length 5400) x 2200. The front section of the tank is a clean water tank (straight section length 2400mm), and the rear section is a sewage tank (straight section length 3000mm). The total capacity of the clean water tank is 8.61 cubic meters, the effective volume is 8.2 cubic meters, and the medium is water; The total capacity of the sewage tank is 10.76 cubic meters, with an effective volume of 10.25 cubic meters, and the medium is liquid sewage; The clean water tank and the suction tank are two independent tanks. The water tank is used for cleaning function, and the suction tank is used for suction function. The cleaning and suction functions cannot be used simultaneously, and the two tanks cannot be fully loaded at the same time.

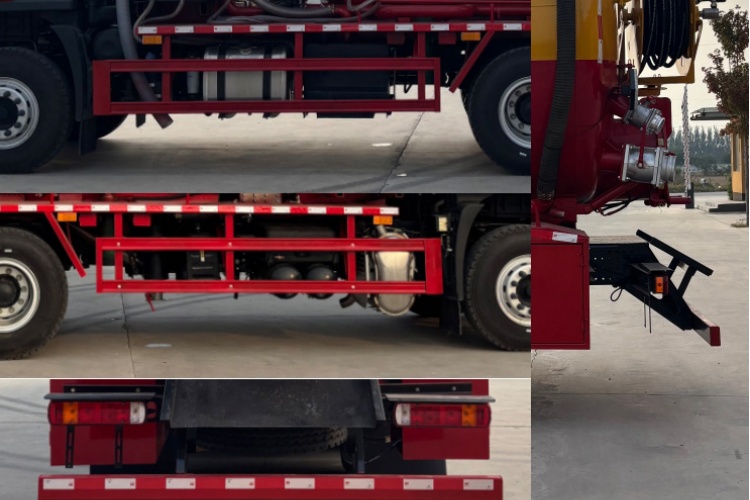

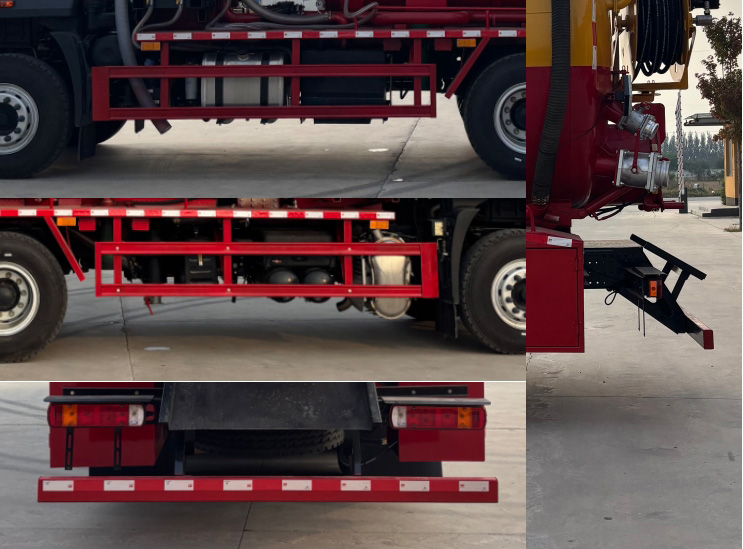

Q235B material for side protection, welded connection; Rear lower protection Q235B, bolted connection, rear lower protection section size (mm): 120 × 60, ground clearance height: 480mm.
This cleaning and suction vehicle is equipped with a limited speed device, with a maximum speed limit of 89km/h. The rear arrow indicator light is only used during operation and is turned off while the vehicle is in motion.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement Batch | 388 |
Product Name | Cleaning the suction truck | Product model | SGW5250GQWBJ6 |
Total mass (Kg) | 25000 | Tank volume (m3) | 10.76 |
Rated load capacity (Kg) | 8270，8205 | Dimensions (mm) | 10180,10300*255083820,3920 |
Curb weight (Kg) | 16600 | Cargo compartment size (mm) | ×× |
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||
Cab capacity (persons) | 2，3 | Maximum load capacity of saddle (Kg) | |
Approach Angle/Departure Angle (degrees) | 18/9 | Front suspension/rear suspension (mm) | 1320/3110, 1320/3230 |
Axle load (Kg) | 7000/18000 | Maximum speed (Km/h) | 89 |
remarks | This vehicle is mainly used for sewage discharge and dredging, with the main devices being the tank body and cleaning suction assembly The tank has a lifting function, and its external dimensions are (total length x diameter) (mm): 6000 (straight section length 5400) x 2200. The front section of the tank is a clean water tank (straight section length 2400mm), and the rear section is a sewage tank (straight section length 3000mm). The total capacity of the clean water tank is 8.61 cubic meters, the effective volume is 8.2 cubic meters, and the medium is water; The total capacity of the sewage tank is 10.76 cubic meters, with an effective volume of 10.25 cubic meters, and the medium is liquid sewage; The clean water tank and the suction tank are two independent tanks. The water tank is used for cleaning function, and the suction tank is used for suction function. The cleaning and suction functions cannot be used simultaneously, and the two tanks cannot be fully loaded at the same time. Q235B material for side protection, welded connection; Rear lower protection Q235B, bolted connection, rear lower protection section size (mm): 120 × 60, ground clearance height: 480mm, ABS models/manufacturers: ABS-E/ZF Commercial Vehicle Systems (Qingdao) Co., Ltd., ABS/ASR-24V-4S/4M/Dongke Knorr Bremse Commercial Vehicle Braking System (Shiyan) Co., Ltd., CM4XL-4S/4M/Guangzhou Ruili Kemi Automotive Electronics Co., Ltd Install a speed limiting device with a maximum speed limit of 89km/h. The rear arrow indicator light is only for use during operation and will be turned off while the vehicle is in motion. | ||
【Chassis Technical Parameters】 | |||
Chassis Model | BJ1251Y6DPS-01 | Chassis name | Truck chassis |
Trademark name | Auman | manufacturing enterprise | Beijing Foton Daimler Automotive Co., Ltd |
Number of axes | 3 | Number of tires | 10 |
Wheelbase (mm) | 4400+1350,4000+1350 | ||
Tire specifications | 12R22.5 18PR,11.00R20 18PR | ||
Number of steel plate springs | 3/4 | Front wheel base (mm) | 2080 |
Fuel type | diesel oil | Rear wheel base (mm) | 1865/1865 |
Emission standards | GB17691-2018国Ⅵ | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
YCK08350-60 YCS06300-61 | Guangxi Yuchai Machinery Co., Ltd Guangxi Yuchai Machinery Co., Ltd | 7689 6442 | 257 221 |
