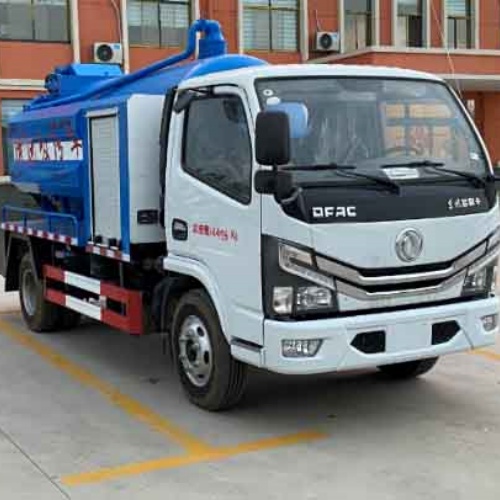

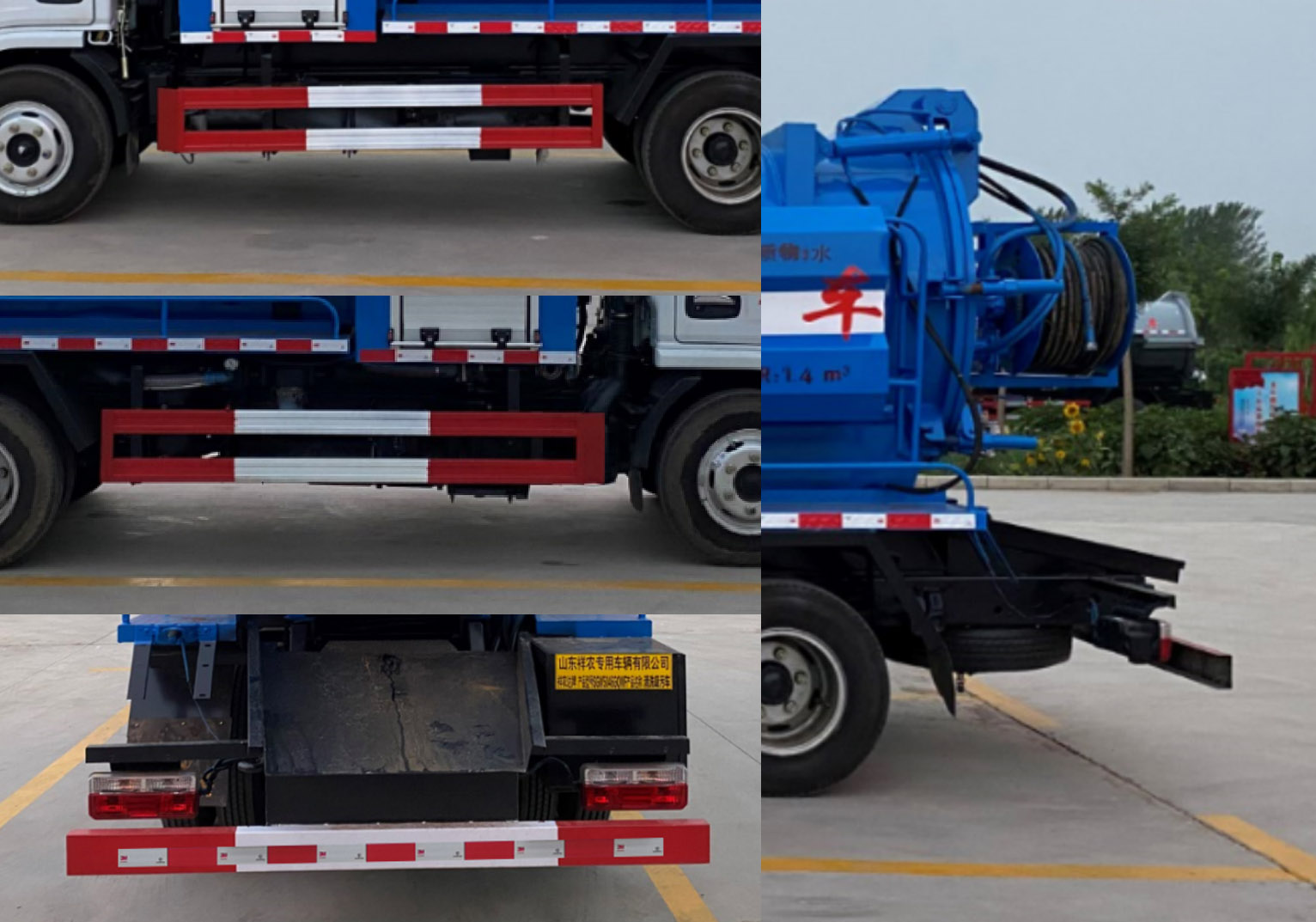

Environmental pipeline dredging vehicle
Moderate capacity, strong flexibility
1.8 cubic capacity design: It belongs to the small and medium-sized specifications among similar models, with both operational capability and flexibility, suitable for limited space scenarios such as narrow urban roads, residential areas, and factory areas. It has a small turning radius and good passability.
Economically applicable: Matching capacity with the needs of small and medium-sized projects (such as community septic tank cleaning, restaurant block pipeline maintenance), avoiding resource waste, and reducing single operation costs.
Product details for cleaning the suction tank of the suction truck
1. Tank structure and material of pipeline dredging vehicle
Material: Made of high-strength carbon steel or corrosion-resistant stainless steel, typically 4-6mm thick, ensuring durability and compressive strength.
Anti corrosion treatment: Internally coated with epoxy resin or polyurethane anti-corrosion coating, externally sprayed with anti rust paint, suitable for sewage and corrosive liquid environments.

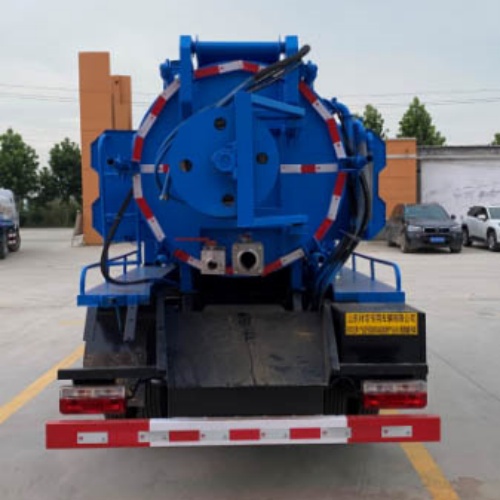

2. Core functional design of cleaning and suction vehicles
Vacuum pump: Standard water circulation vacuum pump, vacuum degree ≥ 28kPa, suction range up to 6-8 meters, suction efficiency ≥ 1.8m ³/min.
Suction pipe: equipped with high-strength steel wire wrapped suction pipe, length 8-10 meters, wear-resistant and corrosion-resistant, equipped with quick couplings.
Self flow discharge: Gravity slag discharge is achieved through a hydraulic lifting device (tilt angle ≥ 45 °) located behind the tank body.
Pressure discharge: Use a vacuum pump to reverse pressure and deal with viscous dirt blockage.
Anti overflow valve: Automatically alarms and cuts off suction when the liquid level exceeds 85%.
Pressure gauge/vacuum gauge: Real time monitoring of the pressure inside the tank to prevent overpressure risks.
3. Auxiliary configuration for vacuum suction trucks
Visual pollution window/liquid level gauge: made of transparent acrylic or glass material, marked with scale lines, to visually monitor the amount of pollution inside the tank.
Cleaning port: A manhole cover is installed on the top of the tank for easy internal cleaning and maintenance.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement Batch | 388 |
Product Name | Product model | SGW5046GQWF | |
Total mass (Kg) | 4495 | Tank volume (m3) | 3.16 |
Rated load capacity (Kg) | 1375 | Dimensions (mm) | 5995*2100*2700 |
Curb weight (Kg) | 2990 | Cargo compartment size (mm) | ×× |
Rated passenger capacity (person) | Total mass of quasi trailer (Kg) | ||
Cab capacity (persons) | 2 | Maximum load capacity of saddle (Kg) | |
Approach Angle/Departure Angle (degrees) | 27/14 | Front suspension/rear suspension (mm) | 1055/1632 |
Axle load (Kg) | 1600/2895 | Maximum speed (Km/h) | 110 |
remarks | ABS manufacturer/model: 1. Zhejiang Wan'an Technology Co., Ltd./VIE ABS-II. 2. Guangzhou Ruili Kemi Automotive Electronics Co., Ltd./CM4YL The side protection is welded and connected with Q235 material, and the rear protection is welded and connected with Q235 material. The cross-sectional size of the rear protection (mm) is 100 × 50, and the height of the rear protection above the ground (mm) is 420380. The special device for this model is the tank and pump, mainly used for environmental sanitation cleaning and suction The total length of the tank is 3200mm, with a clean water tank at the front and a suction tank at the rear The total capacity of the clean water tank is 1.62 cubic meters, with an effective volume of 1.54 cubic meters. The transport medium is water, with a density of 1000 kilograms per cubic meter. The dimensions of the tank body (length x long axis x short axis) are 1400 × 1500 × 1100 in millimeters. The total capacity of the suction tank body is 2.02 cubic meters, with an effective volume of 1.93 cubic meters. The transport medium is liquid waste, with a density of 800 kilograms per cubic meter. The dimensions of the tank body (length x long axis x short axis) are 1800 × 1500 × 1100 in millimeters. Two tanks cannot be used simultaneously and cannot be fully loaded at the same time Only optional 2800mm wheelbase Optional direct power supply ETC onboard device The tire model 6.50R16C 10PR has a single tire load capacity of 975kg and a twin tire load capacity of 850kg Optional rear suction port style. | ||
【Chassis Technical Parameters】 | |||
Chassis Model | EQ1045SJ3CDF | Chassis name | Truck chassis |
Trademark name | Dongfeng brand | manufacturing enterprise | Dongfeng Motor Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 2800 | ||
Tire specifications | 6.50R16,7.00R16,7.50R16LT 8PR,6.00R15LT 10PR,6.50R16LT 10PR,7.00R16LT 8PR | ||
Number of steel plate springs | 6/6+5,3/3+3,2/3+2,5/7+3,5/4+3,6/4+3,6/5+2,6/3+3,3/3,3/3+2,3/6+5,3/8+6,3/5+2,7/10+7 | Front wheel base (mm) | 1525,1519,1472,1545,1613 |
Fuel type | diesel oil | Rear wheel base (mm) | 1498,1516,1586,1458,1650,1800,1472,1670 |
Emission standards | GB17691-2018国Ⅵ | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
D20TCIF1 Q23-115E60 CA4DB1-13E6 | Kunming Yunnei Power Co., Ltd Anhui Quanchai Power Co., Ltd China FAW Group Co., Ltd | 1900 2300 2207 | 125 115 130 |
