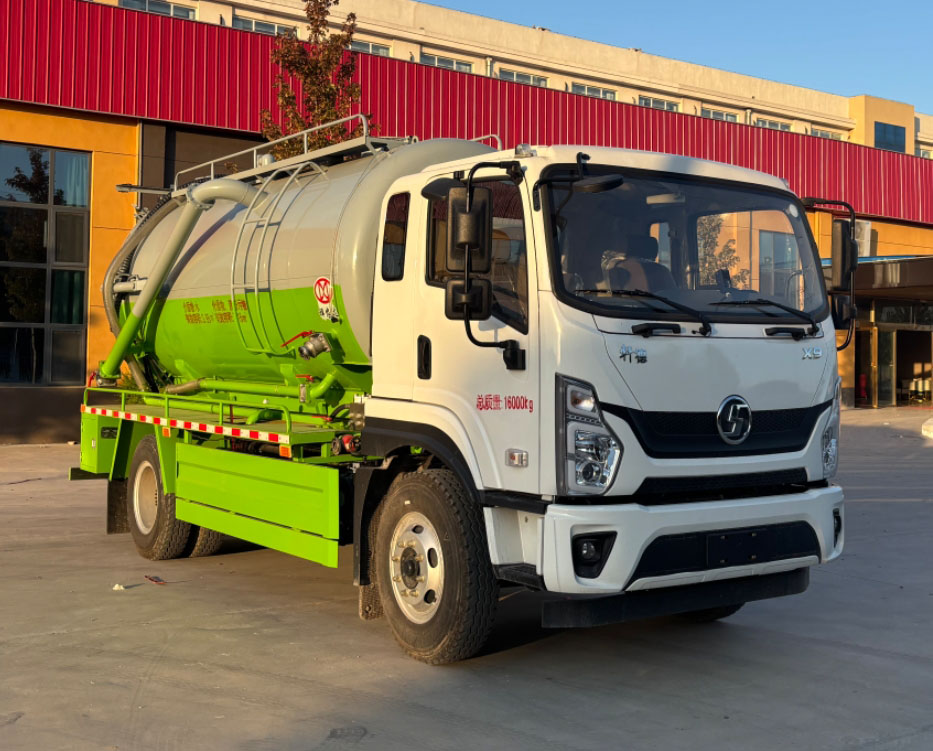

Cleaning Suction Truck
Powerful Performance: Equipped with a 150HP Yunnai D150 engine and a 6-speed PTO gearbox, ensuring robust power and reliable operation for demanding sanitation tasks.
Enhanced Durability: The upper structure utilizes carbon steel material, significantly improving the vehicle's overall strength and long-term service life.
Comprehensive Functionality: Features a complete setup including a power take-off, hand-washing device, rear drain outlet, sight glass, and a 7-meter suction hose, offering versatile application for various cleaning and suction needs.
Operator Convenience & Safety: Designed with electric windows, central locking, and pole-type rearview mirrors to enhance driving comfort, ease of use, and safety.
Intelligent Management: Incorporates a remote discharge management terminal, enabling efficient fleet management and operational control for modern municipal departments.
Broad Applicability: Its superior design, performance, and smart features make it an ideal solution for sanitation and municipal operations in towns and cities of all sizes.
Sanitation cleaning and suction truck chassis configuration: Shaanxi Automobile X9 cab, single row/1995 wide, Yunnei 150 horsepower National VI engine, Fast 6-speed gearbox (with power take-off), 3300 wheelbase, electric doors and windows, central locking system; Rod style rearview mirror, remote emission management terminal, dynamic rotation; Clutch assisted transmission; Auxiliary braking, domestic four channel ABS; Adhesive style air filter, air shut-off brake; Front and lower protection, 130L aluminum alloy fuel tank, ECU reading and recognition of vehicle code, brake test connector, automatic adjustment arm for brake clearance; Seat belt buckle alarm; Brake wear alarm device; Spare tire/headlight adjustment/with air conditioning/Tianxing Jianzhi Ya edition BD car terminal, tire: 7.50R16/14PR, frame: 800 × (132-192)/6+4 double-layer
Top configuration: Standard configuration:
(1) Made of carbon steel material, the cylinder and head are both 6mm.

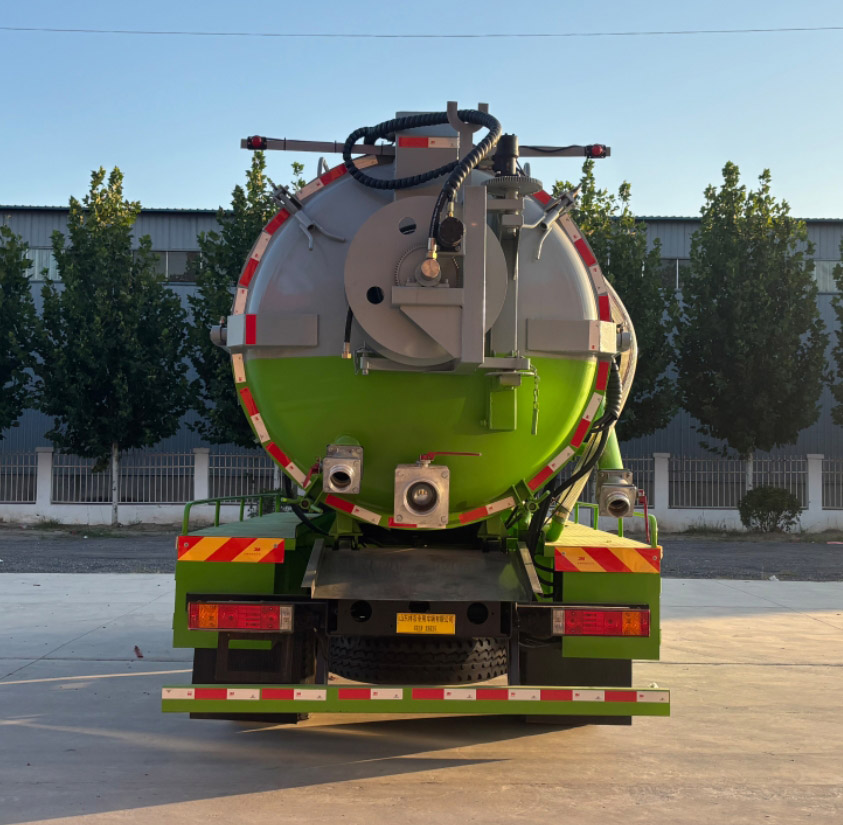

(2) Yifeng's complete set of vacuum pumps, domestic oil pumps, multi way valves, domestic hydraulic cylinders, power take-off, one hand washing device, one drain outlet on the rear head, one sight window, one 7m suction pipe, painted with ordinary paint.
(3) The oil cylinders on both sides of the tank are lifted, and the rear cover is hydraulically opened with locking.
(4) Equipped with liquid level alarm.
(5) Equipped with a self closing system (with an added pneumatic switch for the anti overflow valve).
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement Batch | 388 |
Product Name | Product model | SGW5160GQWSX6 | |
Total mass (Kg) | 16000 | Tank volume (m3) | |
Rated load capacity (Kg) | 6870,6805 | Dimensions (mm) | 8050x2500,2550x3500 |
Curb weight (Kg) | 9000 | Maximum speed (Km/h) | 89 |
Cab capacity (persons) | 2，3 | Axle load (Kg) | 5600/10400 |
Approach Angle/Departure Angle (degrees) | 20/10 | Front suspension/rear suspension (mm) | 1300/2650 |
remarks | This vehicle is mainly used for sewage discharge and dredging, with the main devices being the tank body and cleaning suction assembly The tank has a lifting function, and its external dimensions are (total length x diameter) (mm): 4980 (straight section length 4380) x1850. The front section of the tank is a clean water tank (straight section length 1580mm), and the rear section is a sewage tank (straight section length 2800mm). The total capacity of the clean water tank is 4.14 cubic meters, the effective volume is 3.95 cubic meters, and the medium is water; The total capacity of the sewage tank is 7.52 cubic meters, with an effective volume of 7.16 cubic meters, and the medium is liquid sewage; The clean water tank and the suction tank are two independent tanks. The water tank is used for cleaning function, and the suction tank is used for suction function. The cleaning and suction functions cannot be used simultaneously, and the two tanks cannot be fully loaded at the same time. Only using 4100 (mm) wheelbase, side protection Q235B material Welding connection: Q235B rear lower protection, bolted connection, rear lower protection section size (mm): 120x60, ground clearance height: 460mm ABS system manufacturer: Xi'an Zhengchang Electronics Co., Ltd., model: ZQFB-V.3. | ||
【Chassis Technical Parameters】 | |||
Chassis Model | SX1160GP6411 | Chassis name | Truck chassis |
Trademark name | shanqi brand | manufacturing enterprise | Shanxi Automobile Holding Group Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 4100,4500,3950 | ||
Tire specifications | 9.00R20,9.00R20 16PR | ||
Number of steel plate springs | 9/11+5,9/11+8,8/10+8,8/10+6,9/10+6,3/4+3,10/10+8,10/11+8 | Front wheel base (mm) | 1770,1937,1810,1650,1700,1790,1830 |
Fuel type | diesel oil | Rear wheel base (mm) | 1700,1818,1725,1595,1650,1750,1810 |
Emission standards | GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
D40TCIF1 YCS04200-68 D36TCIF1 YCY30170-61 | Kunming Yunnei Power Co., Ltd Guangxi Yuchai Machinery Co., Ltd Chengdu Yunnei Power Co., Ltd Guangxi Yuchai Machinery Co., Ltd | 4052 4156 3610 2970 | 185 200 177 170 |
Frequently Asked Questions (FAQ) - 10 Cubic Cleaning and Suction Truck
1. Q: What is the core power configuration of this truck?
A: The truck is equipped with a high-performance 150 horsepower Yunnai D150 engine, paired with a reliable 6-speed manual gearbox featuring a Power Take-Off (PTO) function, ensuring strong and consistent power for all operations.
2. Q: How is the durability and structure of the upper body ensured?
A: The upper tank and structure are constructed from high-strength carbon steel, providing exceptional durability, corrosion resistance, and a long service life to withstand rigorous daily sanitation work.
3. Q: What are the key functional features of the body?
A: Key features include a PTO-driven vacuum/pressure system, a built-in hand-washing device for operator hygiene, a rear discharge outlet, a sight glass for level monitoring, and a versatile 7-meter-long fecal/sludge suction hose for extended reach.
4. Q: What safety and convenience features are included for the driver?
A: The cabin features electric windows, central door locking, and adjustable pole-type rearview mirrors for better visibility. These enhancements improve operational convenience, comfort, and overall driving safety.
5. Q: Does the truck offer any smart management capabilities?
A: Yes. It comes with an integrated remote discharge management terminal. This allows for efficient fleet management, operational data tracking, and monitoring, facilitating smarter municipal management.
6. Q: What types of areas or municipalities is this truck suitable for?
A: Thanks to its balanced size (10 cubic meter capacity), power, and advanced features, it is perfectly suited for sanitation and municipal departments serving large, medium, and small towns for versatile cleaning and suction tasks.
7. Q: What is the main purpose of the Power Take-Off (PTO) function?
A: The PTO transfers engine power to the truck's hydraulic system, which drives the vacuum pump for suction and the pressure pump for high-pressure cleaning/tank flushing, making it the core of the vehicle's operational functions.
8. Q: How is the waste discharged from the truck?
A: Waste can be discharged through the rear high-flow outlet, typically using a pressure-assisted (or gravity) discharge system. The specific method is controlled from the operator's panel.
9. Q: What kind of training is required for operators?
A: Operators should receive standard training on heavy vehicle driving, the specific controls for the suction/pressure systems, safety procedures for handling waste, and basic maintenance checks.
10. Q: What are the standard warranty and service support terms?
A: (Note: This is a generic answer; specifics vary by manufacturer/dealer.)
A: The chassis typically follows the engine manufacturer's warranty. The specialized upper body equipment often comes with a separate warranty (e.g., 1 year). We recommend consulting with your authorized dealer for detailed warranty coverage and available after-sales service packages.
