Electric Vacuum Sewage Truck
1. Zero Emission – Environmentally Friendly Operation
Powered entirely by electricity, the Electric Vacuum Sewage Truck produces zero exhaust emissions during operation. It significantly reduces air pollution and carbon footprint, supporting global goals for green transformation and sustainable urban development.
2. Significantly Lower Operating Costs
Electricity is generally more cost-stable and cheaper than diesel or gasoline. The cost per kilometer of an electric vacuum sewage truck is substantially lower than that of traditional fuel-powered models, delivering immediate savings in daily operations.
3. Simplified Structure – Reduced Maintenance
Compared to internal combustion engine vehicles, the electric drivetrain has fewer moving parts, no engine oil, no fuel filter, and no exhaust system. This results in lower maintenance frequency, reduced labor costs, and minimized downtime.
4. Quiet Operation – Suitable for Sensitive Areas
With significantly lower noise levels than diesel-powered trucks, the electric model is ideal for nighttime operations, residential communities, hospitals, school zones, and urban centers where noise restrictions apply.
5. High Energy Efficiency – Smart Power Management
Equipped with efficient permanent magnet synchronous motors and intelligent battery management systems (BMS) , the vehicle optimizes power output based on real-time load, ensuring longer range and higher energy utilization per charge.
6. Enhanced Corporate & City Image
Adopting electric sanitation equipment demonstrates a commitment to environmental responsibility, technological advancement, and public health. It helps cities and contractors meet ESG goals, quality, tender requirements, and enhances brand reputation.
Electric Vacuum Sewage Truck – Smart, Strong, Sustainable
Zero Emissions · High Efficiency · Intelligent Control
Product Overview
As a dedicated source manufacturer of new energy sanitation equipment, we proudly introduce our latest Electric Vacuum Sewage Truck — a high-performance, zero-emission solution engineered for modern municipal, rural, and industrial wastewater management. Combining powerful suction capability, intelligent control systems, and compact maneuverability, this vehicle is designed to meet the most demanding sewage collection and transportation tasks while supporting global green development goals.
Whether applied in urban drainage maintenance, sewage treatment plant operation, construction site waste清理, rural toilet renovation, or livestock farm effluent treatment, our electric vacuum sewage truck delivers reliable, efficient, and cost-effective performance.
Wide Application Scenarios
The Electric Vacuum Sewage Truck is engineered to excel in diverse and challenging environments:
Municipal Drainage System Maintenance
Efficiently suctions and cleans silt, sand, sewage, feces, stones, small bricks, and other liquid/semi-liquid pollutants from various ditches, sewers, and stormwater networks. It is an indispensable asset for urban pipeline network O&M, flood prevention, and disaster reduction during spring and rainy seasons, ensuring city drainage systems remain clear and functional.
Rural Sanitation & Beautiful Countryside Construction
Its compact body design allows easy access to narrow streets, village lanes, and complex rural terrains. Perfectly suited for rural toilet renovation projects and livestock farm sewage discharge management, it efficiently completes sewage cleaning, collection, and transportation tasks, significantly improving rural living environments and supporting the Beautiful Countryside initiative.
Industrial & Construction Site Waste Treatment
Robust suction power and durable construction make it ideal for construction site wastewater collection, industrial effluent transport, and emergency spill response.
Key Product Advantages
1. Exceptional Suction & Discharge Performance
Equipped with a single-stage rotary vane oil-sealed vacuum pump — the preferred choice for sewage and fecal suction trucks worldwide. This pump offers:
Wide working pressure range
Direct start capability under atmospheric pressure
Extended service life and high reliability
The tank interior features a self-flow discharge structure, enabling fast and effortless unloading without additional auxiliary equipment.
2. Integrated Chassis & Upper Assembly Design
We adopt a fully integrated design and production process for both chassis and upper assembly:
Chassis structure and upper assembly co-designed for optimal compatibility
Reserved mounting space and interfaces on chassis
No damage to original chassis structure or anti-corrosion coating
Superior overall performance and vehicle stability
3. Intelligent CAN Bus Control System
The vehicle supports both suction and powerful discharge functions, managed by an advanced CAN bus control system:
Silicone control panel for speed regulation and valve actuation
One-touch door opening/closing
Self-flow tank discharge for rapid unloading
Integrated anti-slip slope assist, tire pressure monitoring, and electric power steering for enhanced driving safety
4. Fast & Flexible Charging Options
Designed for maximum operational uptime:
Single-gun fast charging socket — charges to 80% in just 30 minutes (ambient temperature ≥20°C, charging pile power ≥150kW)
Optional 6.6kW AC charging socket — compatible with standard household power for overnight or remote area charging
5. Comprehensive Safety Protection
Operator and equipment safety are prioritized through multiple intelligent protection features:
Pressure relief safety valves (positive and negative pressure)
Full-tank alarm system — prevents overfilling and operator misoperation
Voice prompts and musical alarms — accurately broadcast safety alerts and fault diagnostics
Real-time tank level monitoring
6. Superior Tank Construction & Durability
The sewage tank is manufactured from high-quality high-strength carbon steel, with 4mm plate thickness and full welded construction:
Built-in anti-wave baffles — effectively reduce liquid surge impact during acceleration, braking, and turning
Enhanced tank rigidity and extended service life
Corrosion-resistant coating suitable for aggressive wastewater environments
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement Batch | 389 |
Product Name | Pure electric suction truck | Product model | SGW5180GXWBEV |
Total mass (Kg) | 18000 | Tank volume (m3) | |
Rated load capacity (Kg) | 7870,7805 | Dimensions (mm) | 8370,8600x2500x3450,3400 |
Curb weight (Kg) | 10000 | Maximum speed (Km/h) | 90 |
Cab capacity (persons) | 2,3 | Axle load (Kg) | 6500/11500 |
Approach Angle/Departure Angle (degrees) | 17/10,17/9 | Front suspension/rear suspension (mm) | 1270/2600,1270/2830 |

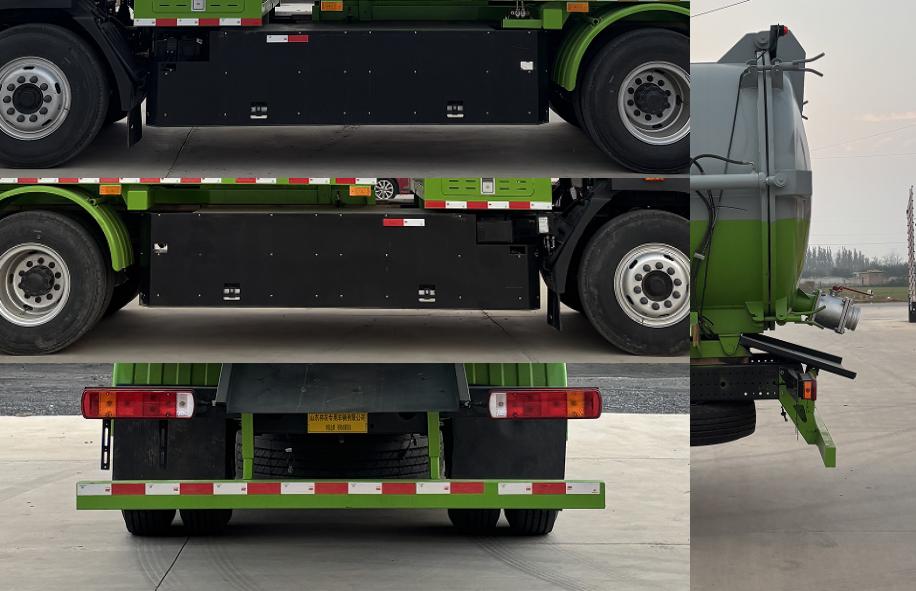

remarks | This vehicle is mainly used for cleaning urban and rural sewage systems; The main devices are tanks and sewage pumps Total tank capacity: 10.24 cubic meters; The effective volume of the tank is 9.75 cubic meters; Dimensions of the tank body (straight section length x diameter) (mm): 4400x1800, total length of the tank body 5000mm The tank can be lifted The side protection is replaced by a battery cover made of Q235B carbon steel and bolted together; The rear protection material is Q235B carbon steel, and the connection method is bolt connection. The cross-sectional size of the rear protection (mm) is 120x60, and the height of the rear protection above the ground (mm) is 460; ABS model/manufacturer: ABS-E/ZF Commercial Vehicle Systems (Qingdao) Co., Ltd.: Energy storage device type: Lithium iron phosphate battery, individual energy storage device manufacturer: CATL New Energy Technology Co., Ltd., energy storage device assembly manufacturer: CATL New Energy Technology Co., Ltd.: Motor model/manufacturer: TZ375XSSF-SZF611/Shaanxi Fast Gear Co., Ltd., rated power: 105kW, peak power: 175kW Only 4500mm wheelbase is used Optional direct power supply ETC onboard device | ||
【Chassis Technical Parameters】 | |||
Chassis Model | BJ1186EVJA5 | Chassis name | Truck chassis |
Trademark name | Futian brand | manufacturing enterprise | Beiqi Foton Motor Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 4500 | ||
Tire specifications | 10.00R20 18PR | ||
Number of steel plate springs | 10/8+8 | Front wheel base (mm) | 2008 |
Fuel type | diesel oil | Rear wheel base (mm) | 1860 |
Emission standards | Pure electric | ||
Frequently Asked Questions (FAQ)
1. What is the maximum suction depth and distance of this electric vacuum sewage truck?
Our Electric Vacuum Sewage Truck typically achieves a vertical suction depth of up to 8 meters and a horizontal suction distance of over 100 meters, depending on hose diameter, pollutant density, and ambient conditions. Custom configurations are available for special requirements.
2. How long does the battery last per charge under normal operation?
With a full charge, the vehicle supports 4 to 6 hours of continuous operation, depending on load, suction frequency, and driving distance. The fast charging feature enables opportunity charging during breaks, effectively supporting full-day shift operations.
3. Is the vehicle suitable for cold climate regions?
Yes. We offer an optional cold-climate package including battery thermal management system, low-temperature resistant hydraulic fluid, and anti-freeze valves. This ensures reliable startup and operation in ambient temperatures as low as -30°C.
4. What spare parts do you recommend keeping in stock?
We recommend maintaining an inventory of:
Vacuum pump oil seals and filters
Suction and discharge hoses
Control panel fuses and relays
Pressure relief valve seals
Battery contactors
As a source manufacturer, we supply 100% genuine spare parts with fast global delivery.
5. Do you offer customization for specific market requirements?
Absolutely. We provide tailored solutions including:
Tank capacity options (3m³ to 12m³)
Hose reel configurations
Different vacuum pump models
Left-hand/right-hand drive
Compliance with local road transport regulations
Custom color and fleet branding
Source Manufacturer Advantage
As a direct source manufacturer of new energy sanitation equipment, we offer:
Factory-direct pricing — no intermediary markups
Full customization — configured to your local operating conditions
Strict quality control — from material sourcing to final assembly
Genuine spare parts supply — short lead times
Comprehensive after-sales support — online technical assistance, field service training, and warranty coverage
We are not just a supplier — we are your long-term partner in building cleaner, smarter, and more sustainable cities and communities.
Conclusion
The Electric Vacuum Sewage Truck represents the future of municipal and rural sanitation — powerful, intelligent, and emission-free. With its superior suction performance, rugged durability, advanced safety features, and flexible charging options, it is the ideal choice for governments, contractors, and facility operators seeking to reduce operating costs, meet environmental targets, and improve service quality.
Contact us today to discuss your specific sewage collection and transportation requirements. Let our electric vacuum sewage truck become your trusted partner in clean water, healthy environments, and sustainable development.
