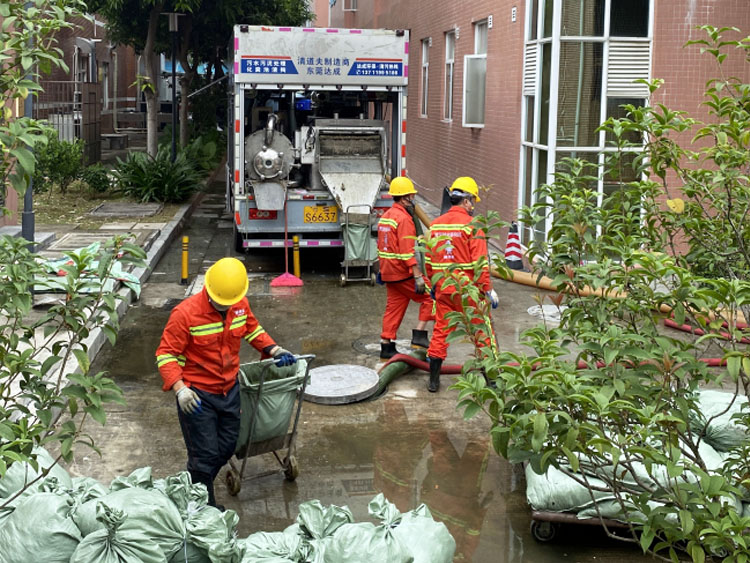

Sewage Cleaning Truck
Integrated High-Pressure Jetting for Unblocking: Equipped with a high-pressure water jetting system, this truck effectively clears blockages and removes hardened deposits like grease and scale from sewer pipes and drains, restoring optimal flow and preventing urban flooding.
Powerful Vacuum for Mixed Debris Removal: Features a robust vacuum pump capable of extracting a wide range of solid and semi-solid waste, including silt, sand, small stones, bricks, and organic matter from septic tanks and sewer lines, ensuring thorough cleaning.
Compact & Agile Design for Confined Access: With its 3-cubic-meter capacity and compact chassis, this truck is perfectly suited for navigating narrow urban alleys, residential areas, and congested worksites where larger vehicles cannot operate efficiently.
Versatile Dual-Function Operation: Combines the power of high-pressure cleaning and strong vacuum suction in a single unit, offering a complete solution for both breaking up stubborn blockages and immediately removing the resulting debris, streamlining the cleaning process.
Efficient Transportation & Disposal: The sealed waste tank allows for the hygienic and leak-proof transportation of collected sludge and wastewater to treatment or disposal sites, minimizing environmental contamination and reducing secondary handling.
Cost-Effective Maintenance & Operation: Built on a reliable Foton platform with simplified systems tailored for core suction and jetting tasks, this model offers lower fuel consumption, easier maintenance, and a reduced total cost of ownership for routine municipal and private sanitation contracts.
Foton 3 Cubic Cleaning and Suction Truck: Precision Engineering for Efficient Sanitation Solutions
In the demanding field of municipal and industrial sanitation, efficiency, reliability, and versatility are paramount. The Foton 3 Cubic Cleaning and Suction Truck emerges as a purpose-built solution, engineered to deliver exceptional performance in waste liquid and sludge management. This compact yet powerful unit is designed for operators who require a highly maneuverable vehicle capable of performing high-pressure sewer cleaning and vacuum suction tasks in confined urban environments. With its optimized tank configuration and robust construction, it represents an ideal investment for contractors and municipal departments seeking to enhance their sanitation service fleet with a cost-effective and specialized asset.
Robust Construction and Safety Features
The truck's durability begins with its protective framework. The side protection is welded using Q235 material, ensuring strong, integral safety guards. Similarly, the rear protection is bolted with Q235 steel, featuring a substantial cross-section of 100×50 mm and positioned at a ground clearance of 380 mm. This design provides critical underrun protection and enhances safety for surrounding traffic in compliance with common operational regulations.
Specialized Tank and Pump System
The core special equipment of this model centers on its dual-compartment tank and powerful pump. The tank assembly, with a straight section length of 2800mm, is intelligently divided to handle different media separately.
Clean Water Tank: Located at the front, this tank is designated for clean water used in high-pressure jetting. With a total capacity of 1.47 m³ and an effective volume of 1.4 m³, it carries water (density: 1000 kg/m³). Its external dimensions are a compact 1200mm in diameter and 1200mm in straight length.
Sewage Suction Tank: Positioned at the rear, this tank is designed for liquid waste collection. It offers a total capacity of 1.83 m³ and an effective volume of 1.75 m³, calibrated for media with an approximate density of 800 kg/m³. Its dimensions are 1600mm in straight length and 1200mm in diameter.
A key operational note is that the two tanks cannot be used simultaneously and cannot be fully loaded at the same time, a design feature that ensures optimal vehicle stability and performance during different task phases.
Chassis Configuration and Options
This specialized body is mounted on a specific 2850mm wheelbase chassis, chosen to provide the ideal balance between stability for fluid transport and agility for navigating tight spaces. Buyers have the flexibility to select a speed limiter (80 km/h) for enhanced safety and regulatory compliance, and can choose the cab style to suit regional preferences or fleet standardization.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement Batch | 360 |
Product Name | Product model | SGW5042GQWBJ6 | |
Total mass (Kg) | 4495 | Tank volume (m3) | |
Rated load capacity (Kg) | 1405 | Dimensions (mm) | 5450x1900x2450 |
Curb weight (Kg) | 2960 | Maximum speed (Km/h) | 105,80 |
Cab capacity (persons) | 2 | Axle load (Kg) | 1617/2878 |
Approach Angle/Departure Angle (degrees) | 20/15 | Front suspension/rear suspension (mm) | 1130/1470 |
remarks | The ABS model is CM4XL-4S/4M, and the manufacturer is Guangzhou Ruili Kemi Automotive Electronics Co., Ltd The ABS model is CM4YL, and the manufacturer is Guangzhou Ruili Kemi Automotive Electronics Co., Ltd The side protection is welded with Q235 material, and the rear protection is bolted with Q235 material. The cross-sectional size of the rear protection (mm) is 100x50, and the height of the rear protection above the ground (mm) is 380. The special device for this model is the tank and pump, mainly used for environmental sanitation cleaning and suction Dirty The straight section of the tank is 2800mm long, with a clear water tank at the front and a suction tank at the rear The total capacity of the clean water tank is 1.47 cubic meters, the effective volume is 1.4 cubic meters, the medium is water, the density is 1000 kg/cubic meter, the external dimensions of the tank body (straight section length x diameter) (mm) are 1200x1200. The total capacity of the suction tank body is 1.83 cubic meters, the effective volume is 1.75 cubic meters, the medium is liquid waste, the density is 800 kg/cubic meter, the external dimensions of the tank body (straight section length x diameter) (mm) are 1600x1200. Two tanks Cannot be used simultaneously, cannot be fully loaded at the same time, only an optional 2850mm wheelbase is available Equipped with a speed limit device on the chassis, the speed limit is 80km/h | ||
【Chassis Technical Parameters】 | |||
Chassis Model | BJ1045V9JB5-54 | Chassis name | Truck chassis |
Trademark name | Futian brand | manufacturing enterprise | Beiqi Foton Motor Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 2850,3360,2800 | ||
Tire specifications | 6.50R16LT 10PR,195/75R16 10PR | ||
Number of steel plate springs | 7/7+5,7/4+3,7/5+2,3/5+2,2/3+2,3/3+3 | Front wheel base (mm) | 1495,1415,1510 |
Fuel type | diesel oil | Rear wheel base (mm) | 1435,1455 |
Emission standards | GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
Q23-115C60 Q23-115E60 Q23-132E60 Q25A-150E60 Q25A-150C60 | Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd | 2300 2300 2300 2496 2496 | 115 115 132 150 150 |
Key Application Scenarios
The Foton 3 Cubic Cleaning and Suction Truck is engineered for a diverse range of sanitation and industrial cleaning applications.
Urban Sewer and Pipeline Maintenance
Blockage Clearing and Pipeline Restoration: Utilizing integrated high-pressure water technology, this truck is perfect for clearing blocked sewers and storm drains. It effectively dislodges obstructions, while the powerful vacuum system simultaneously extracts debris, sludge, and sediments to restore flow.
Septic Tank and Catch Basin Servicing: It is expertly suited for the cleaning of septic tanks and interceptors, efficiently removing fecal sludge, silt, and settled solids, thus preventing overflows and maintaining public health standards.
Industrial and Commercial Facility Support
Liquid Waste Management: The truck is adept at handling industrial wastewater and process slurry collection within factories, food processing plants, or commercial complexes, aiding in waste transfer to treatment points.
Confined Space Operations: Its compact 3-cubic-class size and agile chassis make it the prime choice for operations in narrow factory yards, alleyways, and densely built environments where larger sewage suction trucks cannot access.
Emergency Response and Cleaning
Spill Recovery and Flood Water Removal: The strong vacuum pump enables quick response for suctioning spilled liquids or residual flood water from basements, parking lots, and construction sites.
Frequently Asked Questions (FAQ)
Q1: Why can't the clean water tank and sewage suction tank be used simultaneously at full capacity?
A: This is a deliberate design feature for vehicle stability and safety. Operating both tanks at full capacity simultaneously would significantly shift the vehicle's center of gravity and axle load distribution, potentially affecting braking, handling, and structural stress. The system is engineered for sequential operation: using the clean water for jetting, then employing the vacuum to remove the resulting slurry, which optimizes performance and safety.
Q2: Is the 2850mm wheelbase the only available option for this model?
A: For this specific 3 cubic cleaning and suction truck configuration, the 2850mm wheelbase is the standard and optimized platform. It is selected to provide the necessary support for the tank and pump equipment while ensuring exceptional maneuverability, which is a key selling point of this compact-class truck.
Q3: What is the purpose of the optional 80 km/h speed limiter?
A: The optional speed limiter is a valuable feature for fleet management and regulatory compliance, especially in urban areas or for companies prioritizing safety. It helps control fuel consumption, reduce wear and tear, and ensure the vehicle operates at safe speeds when transporting liquids, aligning with best practices for specialized sanitation service vehicles.
Q4: Can the cab style be customized to match our existing fleet?
A: Yes. The cab style is optionally available with the chassis. This allows B2B buyers to specify a cab configuration that matches their current fleet for driver familiarity and unified branding, or to select a design that meets specific ergonomic or regional market requirements.
Optimize your sanitation operations with the precision and agility of the Foton 3 Cubic Cleaning and Suction Truck. This vehicle is engineered to tackle challenging cleanup and suction tasks with unmatched efficiency in space-constrained environments.
Contact our global sales team today to request a detailed technical datasheet, discuss your specific operational needs, or to arrange a live demonstration. Let us provide you with a tailored quotation and show you how this specialized truck can become a cornerstone of your efficient and reliable service fleet.
