Sewage Suction Truck
1. Efficient Mud-Water Separation System
Equipped with an advanced mud-water separation and filtration system that effectively separates solid sludge from liquid waste inside the tank for improved disposal efficiency.
2. Pressure Reverse Discharge Function
Features a sewage pressure reverse discharge mechanism that allows filtered liquid to be discharged back directly into underground pipelines, simplifying waste processing.
3. High-Height Material Delivery
Engineered with powerful discharge pressure capable of输送 materials to elevated warehouses or storage facilities, making it ideal for jobsites requiring vertical unloading.
4. Increased Load Efficiency
By separating and discharging excess liquid during operation, the truck maximizes available tank capacity for collecting more solid waste without frequent trips for disposal.
5. Versatile Municipal & Industrial Use
Perfect for sewage system maintenance, septic tank cleaning, and industrial waste management, adapting to both underground pipeline work and above-ground material delivery.
6. Time & Labor Saving Operation
The integrated separation and discharge automation reduces manual handling and processing time, allowing operators to complete jobs faster with fewer steps.
12 Cubic Sewage Suction Truck: High-Capacity Vacuum Solution for Municipal & Industrial Waste Management
Introduction to the 12 Cubic Sewage Suction Truck
The 12 Cubic Sewage Suction Truck is a heavy-duty, high-efficiency vacuum vehicle designed for the rapid collection, transportation, and disposal of liquid pollutants, sludge, and industrial waste. Built on a reliable Foton chassis and compliant with international emission standards, this model is ideal for municipalities, waste treatment facilities, and large-scale industrial operations requiring a robust sewage suction truck with superior suction power and operational safety.
With an effective tank volume of 11.76 cubic meters, this truck balances large capacity with maneuverability, making it suitable for both urban sewage networks and remote industrial sites.
Key Features of the 12m³ Vacuum Sewage Tanker
1. High-Capacity Tank with Optimized Design
The sewage vacuum tanker features a straight-section tank measuring 4600 mm in length and 1800 mm in diameter, constructed from high-strength Q235 carbon steel. This design ensures durability against corrosive waste while maximizing load efficiency. The tank is engineered to handle liquids with a density of 800 kg/m³, providing a rated load capacity of 8960 kg.
2. Powerful Vacuum Pump System
Equipped with an advanced vacuum pump, this industrial sludge suction truck delivers rapid extraction of liquid pollutants from septic tanks, drainage ditches, and industrial lagoons. The system is designed for continuous operation, ensuring minimal downtime during high-volume collection tasks.
3. Emergency Safety Protection System
Operator safety is a top priority. The medium-sized sewage suction vehicle is fitted with emergency safety protection switches on the operation panel. These switches instantly cut power to the vacuum system in critical situations, safeguarding both personnel and equipment during operation or maintenance.
4. Robust Chassis and Suspension
Built on the Foton BJ1186VKPHK-1K truck chassis, this vehicle offers exceptional stability. It features:
Wheelbase: 4500 mm for balanced load distribution.
Suspension: Multi-leaf spring configurations (10/8+8, 10/10+8) for handling rough terrain.
Tires: Heavy-duty 10.00R20 or 11R22.5 options for enhanced traction.
5. Reliable Braking and ABS
The truck is equipped with a dual-circuit ABS system from leading manufacturers like WABCO and Dongke Knorr Bremse, ensuring safe stopping power even under full load. The rear protection device meets rigorous safety standards, with a ground clearance of 450 mm and cross-sectional dimensions of 50×120 mm.
6. Fuel-Efficient Diesel Engine
Powered by a diesel engine compliant with modern emission norms, this municipal sewage suction truck delivers excellent fuel economy while meeting global environmental requirements. The maximum speed of 89 km/h allows for efficient transit between job sites.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement Batch | 324 |
Product Name | sewage suction truck | Product model | SGW5180GXWF |
Total mass (Kg) | 18000 | Tank volume (m3) | 11.76 |
Rated load capacity (Kg) | 8960 | Dimensions (mm) | 8150×2500×3400 |
Curb weight (Kg) | 8910 | Maximum speed (Km/h) | 89 |
Cab capacity (persons) | 2 | Axle load (Kg) | 6500/11500 |
Approach Angle/Departure Angle (degrees) | 18/12 | Front suspension/rear suspension (mm) | 1270/2380 |
remarks | This vehicle is used for suctioning liquid pollutants, and the professional equipment mainly includes tanks, vacuum pumps, etc. The transport medium is liquid pollutants with a density of 800 kg/cubic meter. The effective volume of the tank is 11.76 cubic meters The length of the straight section of the tank body multiplied by the diameter (mm) is 4600 × 1800. On both sides, the rear protection is welded to the frame, and the material used for the side and rear protection is Q235. The cross-sectional size of the rear protection device (width × height) is 50 × 120 (mm), and the height of the rear protection above the ground is 450mm; ABS system model/manufacturer correspondence: ABS-E/WABCO Automotive Control Systems (China) Co., Ltd; ABS/ASR-24V-4S/4M/Dongke Knorr Bremse Commercial Vehicle Braking System (Shiyan) Co., Ltd. Only equipped with 4500mm wheelbase. | ||
【Chassis Technical Parameters】 | |||
Chassis Model | BJ1186VKPHK-1K | Chassis name | Truck chassis |
Trademark name | Futian brand | manufacturing enterprise | Beiqi Foton Motor Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 4500,5500,5150,5750,4700 | ||
Tire specifications | 10.00R20 18PR,11R22.5 18PR,275/80R22.5 18PR | ||
Number of steel plate springs | 10/8+8,10/10+8,3/4+3,10/- | Front wheel base (mm) | 2008,1960,1931,1982,1952 |
Fuel type | diesel oil | Rear wheel base (mm) | 1860,1840 |
Emission standards | GB3847-2005,GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
CA6DH1-22E6 B6.2NS6B210 B6.2NS6B230 F4.5NS6B190 D6.7NS6B230 D6.7NS6B260 F4.5NS6B220 B6.2NS6B245 | China FAW Group Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Beijing Futian Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Beijing Futian Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd | 5700 6200 6200 4500 6700 6700 4500 6200 | 165 154 169 140 169 191 162 180 |

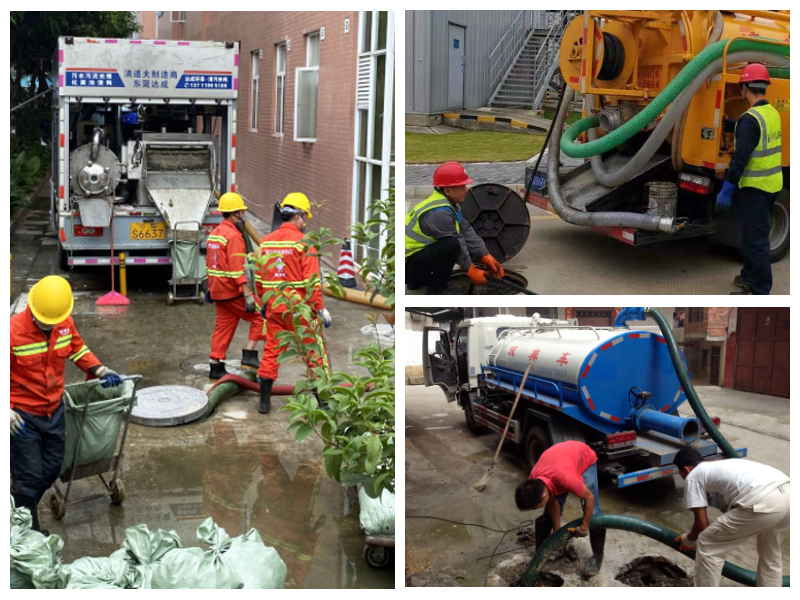

Applications of the 12 Cubic Sewage Suction Truck
Municipal Sewage and Drainage Maintenance
This truck is an essential asset for city sanitation departments. It efficiently cleans clogged sewer lines, manholes, and storm drains, using its powerful suction to remove solid debris and liquid waste quickly.
Industrial Waste Management
Factories and processing plants generate large volumes of liquid waste. The vacuum sewage tanker can extract sludge from settling ponds and industrial pits, transporting it to treatment facilities without spillage or environmental contamination.
Septic Tank Cleaning and Emptying
Rural and peri-urban areas rely on septic systems. This septic tank suction vehicle offers the capacity and suction depth needed to service multiple residential or commercial septic tanks in a single trip, reducing operational costs.
Emergency Spill Response
In the event of hazardous liquid spills, this truck serves as a rapid response unit. Its emergency safety features and high-capacity tank make it ideal for containing and removing pollutants from accident sites.
Why Choose This 12 Cubic Sewage Suction Truck?
Large Effective Volume: With 11.76 m³ capacity, you move more waste per trip, lowering fuel and labor costs.
Emergency Safety Focus: The inclusion of emergency safety protection switches sets this model apart from standard units.
Durable Build: Q235 steel construction ensures longevity, even with corrosive materials.
Certified Components: ABS and braking systems from globally trusted brands like WABCO guarantee reliability.
Frequently Asked Questions (FAQ)
1. What is the effective tank volume of this sewage suction truck?
The effective tank volume is 11.76 cubic meters. It is designed to transport liquid pollutants with a density of up to 800 kg/m³, providing a rated load capacity of 8,960 kg.
2. What safety features are included on this vacuum tanker?
This model includes emergency safety protection switches on the operation panel. These allow the operator to immediately shut down the vacuum system in an emergency. Additionally, it features a high-visibility rear protection device and a dual-circuit ABS braking system from WABCO or Dongke Knorr Bremse.
3. Which chassis and engine does this truck use?
The truck is built on the Foton BJ1186VKPHK-1K chassis. It is powered by a fuel-efficient diesel engine that meets current emission standards, ensuring compliance in various international markets.
4. Can this truck handle both liquid waste and thick sludge?
Yes, the powerful vacuum pump system is designed to handle a variety of materials, from thin liquid pollutants to thick, semi-solid sludge commonly found in industrial pits and septic tanks.
5. What are the available tire options for different terrains?
The chassis supports multiple tire specifications, including 10.00R20, 11R22.5, and 275/80R22.5. This allows buyers to select tires best suited for on-road highway travel or off-road job site conditions.
