4 Cubic Meters FAW Jiefang Cleaning Suction Vacuum Truck | Efficient Sewage Suction & Pipeline Dredging Solution

Overview: Advanced Liquid Waste Management Solution

The 4 Cubic Cleaning Suction Vacuum Truck represents a sophisticated approach to liquid waste management, combining the reliability of the FAW Jiefang chassis with advanced vacuum technology. This specialized sewage suction truck is engineered specifically for collecting, transferring, and removing sludge and sewage while effectively preventing secondary pollution . With its powerful suction capabilities and robust construction, this vehicle serves as an essential asset for municipal sanitation departments, industrial facilities, and environmental cleanup operations seeking efficient liquid waste transportation solutions.

Superior Design and Construction Features

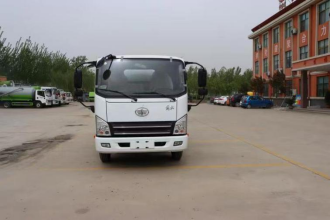

Robust FAW Jiefang Chassis Foundation

Built upon the trusted FAW Jiefang flat head diesel truck chassis (Model CA1072P40K61L2BE6A84), this vacuum truck delivers exceptional stability and load-bearing capacity. The 4X2 configuration with 3,300mm wheelbase ensures optimal weight distribution whether fully loaded or during suction operations. The chassis accommodates 7.00R16 or 7.50R16 tires across six wheels, providing reliable traction across various job site conditions.

The vehicle incorporates advanced safety systems, featuring dual ABS anti-lock braking system options from leading manufacturers:

• Guangzhou Ruili Kemi Automotive Electronics Co., Ltd. (CM4XL-4S/4M)

• Zhejiang Wan'an Technology Co., Ltd. (VIE ABS-II)

Precision-Engineered Tank Construction

The dedicated tank system is specifically designed for handling liquid pollutants with a density of 800 kg/m³. The tank's external dimensions feature a straight section length of 3,300mm with a 1,300mm diameter, optimizing the balance between capacity and maneuverability. Constructed with Q235 protective material, the tank offers superior durability against corrosive waste materials while maintaining structural integrity during transport.

Comprehensive Safety and Protection Systems

Safety remains paramount in the design of this sewage suction truck. The protection system utilizes Q235 material throughout, with welded connections between protective devices and the frame ensuring permanent, reliable attachment. The rear protective device stands 440mm above ground, featuring a robust 120mm × 52mm cross-section that effectively shields the vehicle from impact damage during reversing and tight maneuvering.

Advanced Vacuum and Suction Mechanism

Powerful Vacuum Pump System

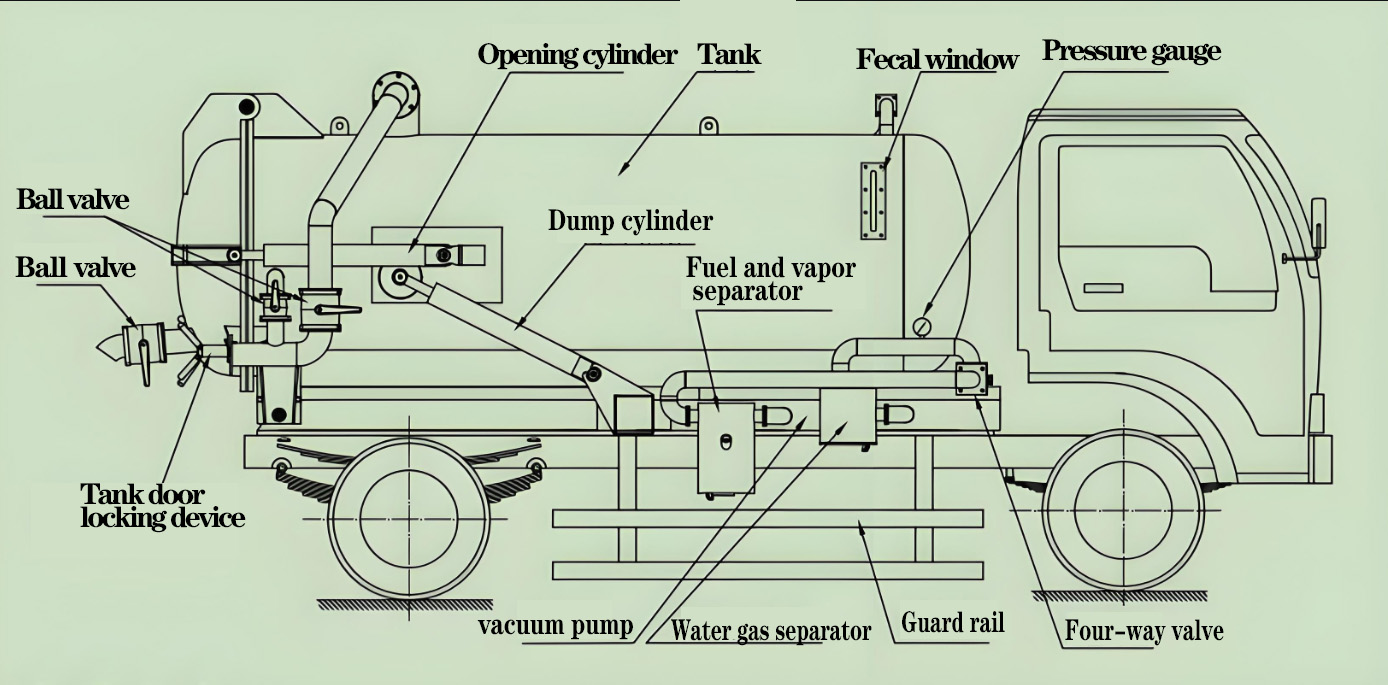

At the heart of this cleaning suction truck lies a sophisticated circulation system that efficiently manages the suction pump and water tank operations. The vacuum system incorporates multiple specialized components working in harmony:

• Hydraulic Oil Cylinder System: Provides the mechanical force necessary for lifting and tilting operations

• Multi-way Directional Valve: Enables precise control of hydraulic fluid distribution

• Ball Valves: Ensure positive shutoff and flow control throughout the system

Dual Protection Against Overflow

The vehicle features an innovative anti-overflow system comprising:

• Primary Anti-overflow Valve: Automatically engages to prevent liquid from entering the vacuum pump

• Water Gas Separator (Secondary Anti-overflow): Acts as an additional safeguard, separating moisture from air before it reaches critical components

This dual-protection approach significantly extends the service life of the vacuum pump while ensuring uninterrupted operation even during challenging suction tasks .

Comprehensive Monitoring and Control Components

Operators benefit from a complete suite of monitoring equipment:

• Suction Pipe Assembly: Engineered for optimal flow dynamics

• Liquid Observation Mirror: Allows visual confirmation of tank fill levels

• Pressure Gauge: Provides real-time system pressure monitoring

• Various Accessories and Fittings: Complete the system for reliable operation

Exceptional Performance Characteristics

Rapid Working Speed and High Efficiency

The sewage suction truck delivers exceptional operational speed, enabling rapid collection and transfer of liquid waste materials. The powerful vacuum system quickly evacuates sludge and sewage from septic tanks, sewage ponds, and drainage systems, significantly reducing job completion times compared to manual methods or less sophisticated equipment .

Large Capacity with Compact Footprint

Despite its substantial 4.23 cubic meter tank capacity, the vehicle maintains a compact external profile measuring just 5,995mm in length. This thoughtful design allows the vacuum truck to navigate narrow urban streets and confined job sites where larger vehicles cannot operate effectively. The 20° approach angle and 16° departure angle further enhance obstacle clearance capabilities.

Versatile Liquid Substance Handling

Specifically optimized for collecting and transporting liquid substances, this vehicle excels at handling:

• Municipal sewage and wastewater

• Industrial effluents and liquid waste

• Sludge from treatment facilities

• Septic tank contents

• Drainage system accumulations

The tank's effective volume of 4.14 m³ provides generous capacity while maintaining compliance with weight regulations when fully loaded with 800 kg/m³ density materials.

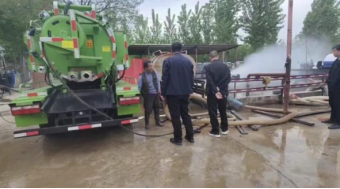

Primary Application Scenarios

Municipal Sanitation and Urban Maintenance

Municipal authorities will find this cleaning suction truck indispensable for routine sanitation operations. Its combination of power and maneuverability makes it ideal for:

• Regular sewage system maintenance

• Emergency spill response

• Street cleaning support operations

• Drainage system dredging

Residential Community Waste Management

The vehicle's compact dimensions and powerful suction capabilities make it particularly suitable for residential applications:

• Septic tank pumping services

• Community sewage collection

• Apartment complex waste management

• Gated community sanitation operations

Industrial and Commercial Facilities

Industrial operations requiring reliable liquid waste removal benefit from this truck's robust construction:

• Factory effluent collection

• Commercial kitchen waste management

• Industrial site cleanup

• Construction site dewatering support

Environmental Protection Operations

For organizations focused on environmental conservation, this sewage suction truck provides essential capabilities:

• Pollution control and containment

• Environmental remediation projects

• Spill prevention and response

• Waterway and drainage protection

Frequently Asked Questions (FAQ)

Q1: What is the difference between the SGW5070GXWCA6 yellow card and SGW5040GQWCA6 blue card models?

The primary distinction lies in their registration classifications and corresponding operational allowances. The yellow card model (SGW5070GXWCA6) offers higher total mass capacity at 7,360 Kg, making it suitable for heavier-duty applications and longer-distance transport. The blue card model (SGW5040GQWCA6) features a lighter configuration that may offer driving license advantages in certain jurisdictions and potentially lower operating costs for lighter-duty applications. Both models share the same robust construction and vacuum system quality.

Q2: How does the dual anti-overflow protection system work?

The system employs two complementary safeguards. The primary anti-overflow valve automatically closes when the tank reaches capacity, preventing liquid from entering the vacuum pump. The water gas separator acts as a secondary defense, capturing any moisture that might bypass the primary system and separating it from the air stream before it can damage sensitive pump components. This dual-layer protection significantly extends pump life and ensures reliable operation even when working with challenging liquid waste materials.

Q3: What maintenance does the vacuum pump require?

Regular maintenance should include daily visual inspections of the pump and associated components, checking for unusual noise or vibration during operation. The water gas separator should be inspected and cleaned according to the manufacturer's schedule to maintain efficiency. Hydraulic oil levels in the cylinder system require periodic verification, and all ball valves should be exercised regularly to prevent sticking. The Q235 protective materials should be inspected for damage, particularly after operating in harsh environments.

Q4: Can this truck handle both liquid and semi-solid waste materials?

Yes, this sewage suction truck is specifically engineered for collecting and transporting liquid pollutants with densities up to 800 kg/m³. While optimized for liquid substances, the powerful vacuum system and 4.23 m³ tank can effectively handle semi-solid materials such as sludge, thick sediments, and waste with moderate solid content. For heavily solidified materials, pre-treatment or dilution may be recommended to optimize suction efficiency and protect system components.

Q5: What are the approach and departure angles, and why do they matter?

The approach angle of 20° and departure angle of 16° indicate the maximum slope the vehicle can ascend or descend without the front bumper or rear chassis making contact with the ground. These specifications are particularly important when operating in rough terrain, accessing job sites with steep driveways, or navigating uneven construction areas. The generous angles on this vacuum truck provide excellent obstacle clearance, allowing operators to access challenging locations where vehicles with poorer geometry cannot safely venture.

Q6: How does the FAW Jiefang chassis enhance operational reliability?

The FAW Jiefang chassis represents decades of Chinese automotive manufacturing expertise, specifically engineered for commercial durability. The flat head diesel configuration provides excellent forward visibility for maneuvering in tight urban environments. The chassis incorporates proven suspension systems (3/3+4, 3/7+3 configurations) that maintain stability whether loaded or empty. With multiple spring combinations available, the chassis can be configured to match specific operational requirements while maintaining the reliability that has made FAW Jiefang a trusted name in commercial vehicles worldwide.
