Sewer Cleaner Truck
1. Powerful Combination for Demanding Jobs
Integrates a high-pressure flushing jet and a robust vacuum suction pump in one vehicle. This powerful duo allows it to break up tough blockages, debris, and hardened sludge, then immediately vacuum and transport the waste efficiently.
2. High-Efficiency Performance with Optimal Capacity
The 8-cubic-meter tank offers a balanced solution, providing substantial workload capacity for extended operations while maintaining better maneuverability in narrow urban streets or congested worksites compared to larger units, maximizing productivity.
3. Strong Suction for Diverse Media
Equipped with a high-power vacuum system capable of handling a wide range of materials. It effectively extracts not only wastewater and liquids but also viscous sludge, semi-solid waste, and residues, making it versatile for sewer, septic tank, and industrial cleaning.
4. User-Friendly & Ergonomic Operation
Designed with the operator in mind. Features a centralized control panel, ergonomic hose and tool management, and clear safety indicators. These design elements simplify the workflow, reduce operator fatigue, and enhance on-site safety.
5. Streamlined Transportation & Rapid Deployment
Built on a reliable, standard truck chassis for easy road licensing and maintenance. Its design facilitates quick setup at the job site, allowing crews to begin work immediately. The efficient tank design also allows for fast loading and unloading cycles.
6. Eco-Friendly & Energy-Conscious Design
Engineered to minimize environmental impact. The sealed system prevents leaks and odors during transport. Optional water recycling systems can be integrated to reduce freshwater consumption, aligning with sustainable operations and helping clients meet environmental regulations.
Product use: This dual-purpose vehicle is widely used for cleaning and suctioning sewage deposits, dredging dead corners and mud ditches, urban sculptures, washing glass exterior walls, cleaning industrial drainage pipelines, integrating sewage suction and discharge, and high-pressure road flushing functions!
Chassis model: BJ1181Y6AKS-03
Model configuration: The all-new National VI chassis is equipped with a Yuchai engine with 200 horsepower or a Yuchai 6-cylinder 245 horsepower engine. 8-speed transmission, 1000R20 steel wire tires, optional 1100R22.5 steel wire tires, original car air conditioning, standard for other chassis!
Top up equipment: 9+6 cleaning and suction dual-use vehicle, optional tank water and sewage volume, water circulation SK-15 vacuum pump or 10 ton oil circulation vacuum pump, standard 220 pressure 215 flow high-pressure cleaning pump, equipped with 60 meter high-pressure cleaning tube, 10 ordinary cleaning heads, fully automatic welding inside and outside the tank body, single-sided welding double-sided molding with strong pressure resistance, using industry-leading sandblasting and spraying technology, long corrosion resistance service life, 10 meter suction tube, tank body can be lifted by hydraulic pressure, back cover can be opened, water and sewage are interconnected, and other standard equipment!

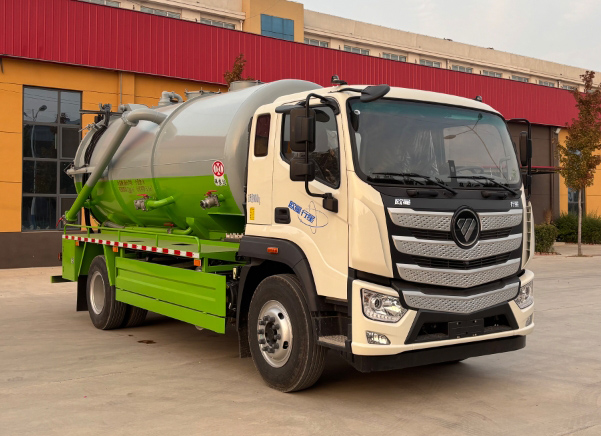

The vacuum cleaning suction truck is an efficient and multifunctional sanitation vehicle, mainly used for cleaning and suction work of urban sewers. It
combines high-pressure cleaning and vacuum suction technology, which can effectively remove sediment and sludge in pipelines and maintain the smoothness of
urban drainage systems. The following are the benefits of cleaning and suction trucks on the Euman planet:
Powerful function: It has multiple functions such as dredging, suction, and cleaning, with three cars on one roof and strong adaptability.
Efficient cleaning: The high-pressure cleaning system can effectively remove sediment from sewers and pipelines, with high cleaning efficiency.
Strong suction: The vacuum suction system can quickly suction and transport various liquid and semi liquid wastes, such as septic tanks, sewers, rainwater wells, etc.
Easy to operate: The vehicle has a reasonable design structure, excellent performance, flexible and easy operation, and improves work efficiency.
Convenient transportation: The vehicle has a reasonable design structure, excellent performance, flexible and easy operation, and improves work efficiency.
Environmental protection and energy conservation: Equipped with a water circulation system and sewage treatment system, it can recycle the water used to clean trains,
reduce water consumption, and be more environmentally friendly.
In summary, the Euman Planet cleaning and suction truck has become an indispensable tool in urban sanitation work due to its powerful functions, efficient cleaning
capabilities, simple operation methods, convenient transportation characteristics, and environmentally friendly and energy-saving design.
【Technical parameters of the entire vehicle】 | |||
Product trademark | Xiangnongda brand | Announcement Batch | 388 |
Product Name | Product model | SGW5182GQWBJ6 | |
Total mass (Kg) | 11800 | Tank volume (m3) | |
Rated load capacity (Kg) | 6610,6545,6370,6305 | Dimensions (mm) | 8630,8830x2550x3520,3600 |
Curb weight (Kg) | 11260,11500 | Axle load (Kg) | 6500/11500 |
Cab capacity (persons) | 2，3 | Maximum speed (Km/h) | 89 |
Approach Angle/Departure Angle (degrees) | 18/9 | Front suspension/rear suspension (mm) | 1270/2860 |
remarks | This vehicle is mainly used for sewage discharge and dredging, with the main devices being the tank body and cleaning suction assembly Using 4500mm and 4700mm wheelbase, the corresponding relationship between vehicle length and wheelbase is (mm): 8630/45008830/4700; The tank has a lifting function, and its external dimensions are (total length x diameter) (mm): 5500 (straight section length 4900) x1900. The front section of the tank is a clean water tank (straight section length 1900mm), and the rear section is a sewage tank (straight section length 3000mm). The total capacity of the clean water tank is 5.5 cubic meters, and the effective capacity is 5.3 cubic meters. The medium is water; The total capacity of the sewage tank is 8.27 cubic meters, with an effective volume of 7.88 cubic meters, and the medium is liquid sewage; The clean water tank and the suction tank are two independent tanks. The water tank is used for cleaning function, and the suction tank is used for suction function. The cleaning and suction functions cannot be used simultaneously, and the two tanks cannot be fully loaded at the same time. Q235B material for side protection, welded connection; Rear lower protection Q235B, bolted connection, rear lower protection section size (mm): 120x60, ground clearance height: 460mm ABS model/manufacturer: CM4XL-4S/4M/Guangzhou Ruili Kemi Automotive Electronics Co., Ltd., ABS/ASR-24V- 4S/4M/Dongke Knorr Bremse Commercial Vehicle Braking Systems (Shiyan) Co., Ltd., ABS-E/ZF Commercial Vehicle Systems (Qingdao) Co., Ltd Install a speed limit device to limit the speed to 89km/h. The rear arrow indicator light is only for use during operation and will be turned off while the vehicle is in motion | ||
【Chassis Technical Parameters】 | |||
Chassis Model | BJ1181Y6AKS-03 | Chassis name | Truck chassis |
Trademark name | Ouman brand | manufacturing enterprise | Beiqi Foton Motor Co., Ltd |
Number of axes | 2 | Number of tires | 6 |
Wheelbase (mm) | 4500,5150,3950,4700 | ||
Tire specifications | 11R22.5 18PR,10.00R20 18PR,275/80R22.5 18PR | ||
Number of steel plate springs | 10/10+8 | Front wheel base (mm) | 2008 |
Fuel type | diesel oil | Rear wheel base (mm) | 1860 |
Emission standards | GB17691-2018 National VI | ||
Engine model | Engine manufacturing enterprises | Emissions（ml） | Power (Kw) |
YCS06245-60A YCS04200-68 | Guangxi Yuchai Machinery Co., Ltd | 6234 4156 | 245 200 |
Frequently Asked Questions (FAQ)
1. Q: What are the primary functions of this 8 cubic meter truck?
A: This is a true multi-functional unit. It seamlessly integrates high-pressure water jetting for flushing and breaking up blockages, powerful vacuum suction for extracting sludge, wastewater, and debris, and a pressurized discharge system for efficient unloading. It handles liquid to semi-solid waste in one continuous operation.
2. Q: For what specific applications is this truck most suitable?
A: It is ideal for a wide range of municipal and industrial tasks, including but not limited to: routine cleaning of municipal sewer lines and storm drains, desilting of settlement tanks and rainwater wells, emergency response to sewer overflows, and scheduled maintenance of septic tanks and grease traps in commercial areas.
3. Q: What is the maximum suction depth and horizontal suction distance?
A: The truck is equipped with a high-performance vacuum pump capable of a maximum vertical suction depth of up to 8 meters and an effective horizontal suction range of over 100 meters with standard hoses, allowing for flexible operation in deep manholes and over long distances.
4. Q: Can it handle solid objects or heavy sludge?
A: Yes. The powerful vacuum system can pass solid objects like stones, debris, and clogs up to 80mm in diameter. Its agitation and suction are highly effective against viscous, heavy sludge and settled solids commonly found in industrial sumps and long-neglected drains.
5. Q: What are the key safety features?
A: Standard safety features include pressure relief valves on the water pump and vacuum tank, anti-overfill sensors, emergency shut-off controls, grounding straps to prevent static discharge, and lockable controls. The chassis is also fitted with standard road safety lighting and markings.
6. Q: What is the recommended maintenance schedule for optimal performance?
A: We recommend daily checks of fluid levels and hose integrity, weekly inspections of the vacuum pump oil and filter system, and a comprehensive professional service every 250 operating hours or 6 months. A detailed maintenance manual is provided with the vehicle.
7. Q: What kind of chassis is it built on, and is the chassis included?
A: The superstructure (cleaning and suction body) is designed to be mounted on a reliable, customer-specified truck chassis of appropriate tonnage (typically a 6x4 or 8x4 configuration depending on local regulations). The chassis is not included in the base price of our equipment, allowing you the flexibility to source it locally for optimal service support and cost efficiency.
8. Q: Are spare parts readily available, and what is the warranty period?
A: Yes. We guarantee the supply of critical spare parts for a minimum of 10 years. The standard warranty covers the superstructure, pumps, and specialized components for 12 months from delivery or 2,000 operating hours, whichever comes first, supported by our global service network.
9. Q: What customization options are available?
A: We support extensive customization to match your specific needs. Options include: upgraded pump pressures or vacuum power, different hose lengths and diameters, a hot water high-pressure system for grease removal, an integrated water recycling system, auxiliary toolboxes, and camera inspection system mounts.
10. Q: What after-sales support do you provide?
A: Our support package includes comprehensive operator and maintenance training (on-site or at our facility), 24/7 remote technical assistance, access to online manuals and parts catalogs, and the option for preventive maintenance contracts. Our goal is to ensure maximum uptime for your fleet.
